Açıklama

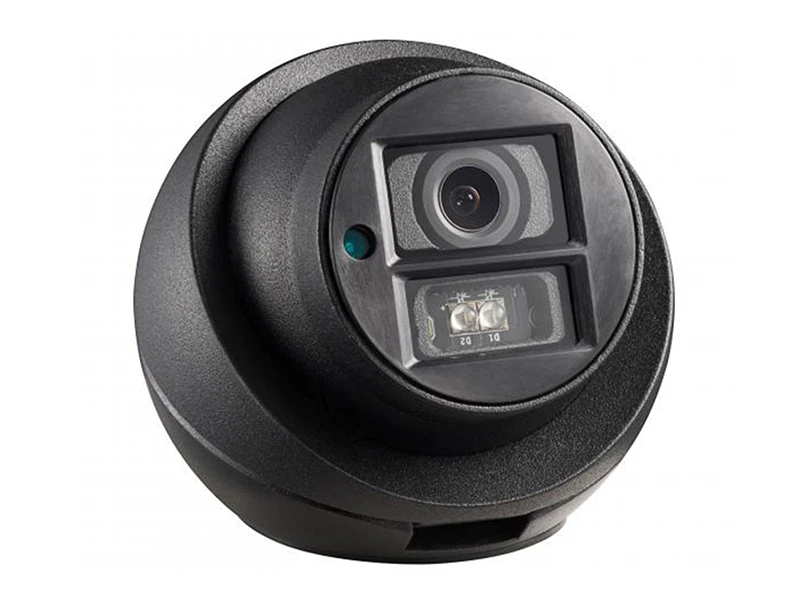

Hikvision AE VC022P(N) ITS AHD Mobil Dome Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1280(H)×800(V) |
Min. Illumination | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.1mm(2.8mm、 3.6mm optional) |
Lens Mount | M12 |
Adjustment Range | Pan:0°- 50°; Tilt:0°- 50°; Rotation:0°- 360° |
Day& Night | Electronic |
Horizontal Resolution | 720TVL |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
Menu | |
AGC | Support |
Interface | |
Audio In | Built-in Mic |
Audio Out | 1-ch audio interface(Aviation plug) |
Video Out | 1Vp-p composite output (75 Ω/Aviation plug) |
General | |
IR Range | 20-30m |
Operation Condition | -40℃~75℃, Humidity 90% or less (non-condensing) |
Power Supply | 6VDC to 16VDC |
Power Consumption | 3.5W MAX |
Weather Proof | IP65 |
Dimension | 74×64.47×71.16 |
Weight | 400g |
Hikvision AE VC022P(N) ITS AHD Mobil Dome Kamera Pdf Dosyası430.84 KB
