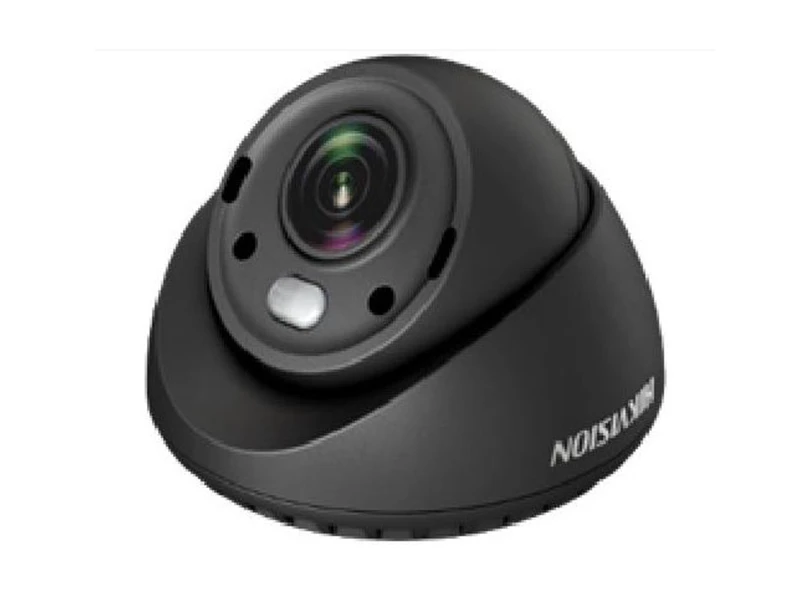

Hikvision AE VC023P(N) ITS AHD Mobil Turret Kamera
Özellikler
- 0.1Lux @(F1.2,AGC ON), 0 lux with IR
- 720TVL high definition
- Adopt wide-angle lens with wider monitoring coverage
- Adopt EXIR technology
- Support electronic shutter and AGC
- Patented universal regulating mechanism, easy to adjust
- Anti-vibration design and aviation port for mobile environments
- Suitable for mobile environments
- Up to IP4X protection level
Teknik Özellikler
| Camera | |
| Image Sensor | 1MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1280(H)*720(V) |
| Min. Illumination | 0.1Lux @ (F1.2,AGC ON), 0 lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.1mm |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0°to 360°; Tilt: 0°to 60°; Rotation: 0°to 360° |
| Day& Night | Electronic |
| Horizontal Resolution | 720TVL |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p composite output (75 Ω/Aviation plug) |
| S/N Ratio | More than 62 dB |
| Menu | |
| AGC | Support |
| Interface | |
| Audio In | Built-in Microphone |
| Audio Out | 1-ch, Aviation Port (Output Impedance: 1KΩ±10%) |
| Video Out | 1Vpp Composite Output |
| General | |
| IR Range | 3m |
| Operation Condition | -30°C to 65°C (-22°F to 149°F), Humidity 90% or less (non-condensing) |
| Power Supply | 6VDC to 16VDC |
| Power Consumption | MAX. 2.5W |
| Weather Proof | IP4X |
| Dimension | 63.1mm×59.8mm×37.6mm (2.48"×2.35"×1.48") |
| Weight | Approx. 400g (0.88lb) |
Hikvision AE VC023PN ITS AHD Mobil Turret Kamera Pdf Dosyası716.1 KB
