Açıklama

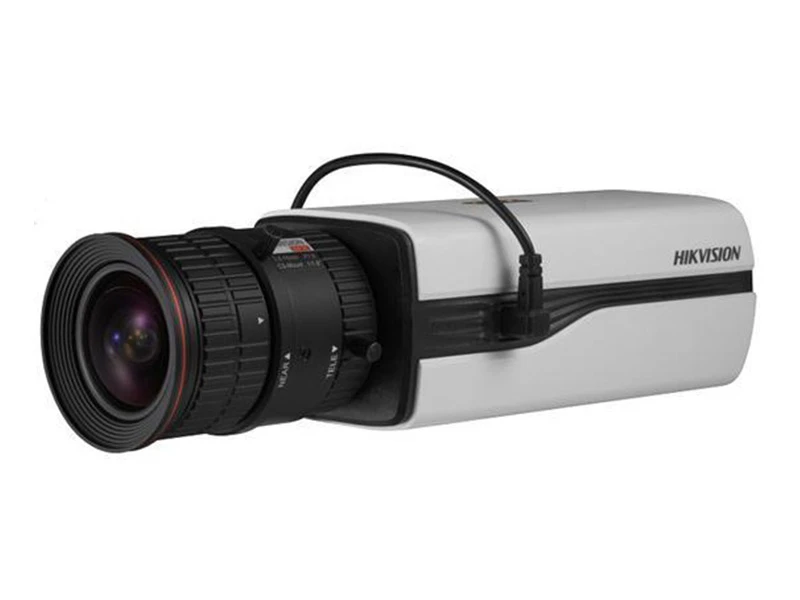

Hikvision DS 2CC12D9T E AHD Box Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- OSD menu, 3D DNR
- True WDR, up to 120dB
- Up the Coax(HIKVISION-C)
- POC(Power over coax)
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1944(H)×1092(V) |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON) |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens Mount | C/CS Mount |
| Auto Iris | DC Drive |
| Day& Night | Electronic |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| Camera ID | On/off (15 characters, position programmable) |
| D/N Mode | Color/BW/Auto |
| Auto White Balance | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | On/Off |
| AGC | Support |
| Anti-flicker | On/ Off |
| Language | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15%, POC |
| Power Consumption | Max. 7W |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 69.2×57.3×148.7mm(2.7” × 2.3” × 5.85”) |
| Weight | 520 g |
Hikvision DS 2CC12D9T E AHD Box Kamera Pdf Dosyası728.04 KB
Hikvision DS 2CC12D9T E AHD Box Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası2.24 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
