Açıklama

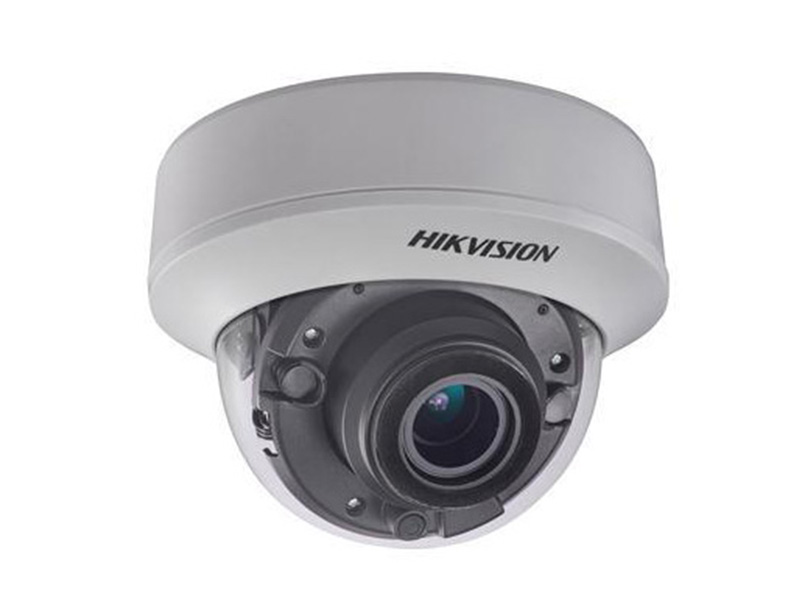

Hikvision DS 2CE56H0T ITZE AHD Dome Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.7-13.5mm motorized vari-focal lens
- True Day/Night
- OSD menu, 2D DNR, DWDR
- PoC.af
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 5MP CMOS Image Sensor |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| BLC | Support |
| AGC | Support |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25%/PoC.af |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | Ø 136 mm × 101.9 mm ( Ø 5.35" × 4.01") |
| Weight | Approx. 455 g (1.00 lb.) |
Hikvision DS 2CE56H0T ITZE AHD Dome Kamera Pdf Dosyası953.54 KB
Teknik Kısa
Çözünürlük : 5MP
