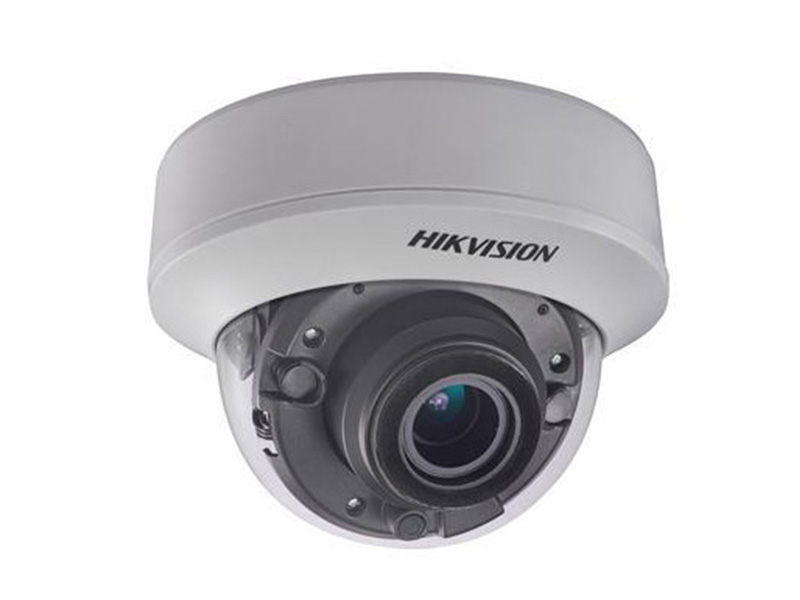

Hikvision DS 2CE56H1T AITZ AHD Dome Kamera

Çözünürlük : 5MP

Camera
Image Sensor	5MP CMOS Image Sensor
Effective Pixels	2592(H)*1944(V)
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	1/25(1/30) s to 1/50,000 s
Lens	Motorized VF lens; 2.8 to 12 mm
Lens Mount	φ14
Adjustment Range	Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Day& Night	IR cut filter with auto switch
Video Frame Rate	2592×1944@20fps
HD Video Output	1 Analog HD output
Synchronization	Internal Synchronization
Menu
D/N Mode	Auto / Color / B/W
BLC	Support
AGC	Support
Language	English/Chinese
Function	Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR
General
Operating Conditions	-40 °C - 60 °C (-40 °F - 140 °F)
Operating Conditions	Humidity 90% or less (non-condensing)
Power Supply	12 VDC±20%
Power Supply	-A: 12 VDC±20% 24 VAC±20%
Power Consumption	Max. 4.5 W
Power Consumption	-A: Max. 6.5 W
Weather Proof	IP65
IR Range	Up to 30m
Communication	Up the coax
Communication	Protocol: HIKVISION-C(Coaxitron)
Dimension	Φ 136 mm × 102 mm (Φ 5.35" × 4.02")
Weight	Approx. 600 g (1.32 lb.)
