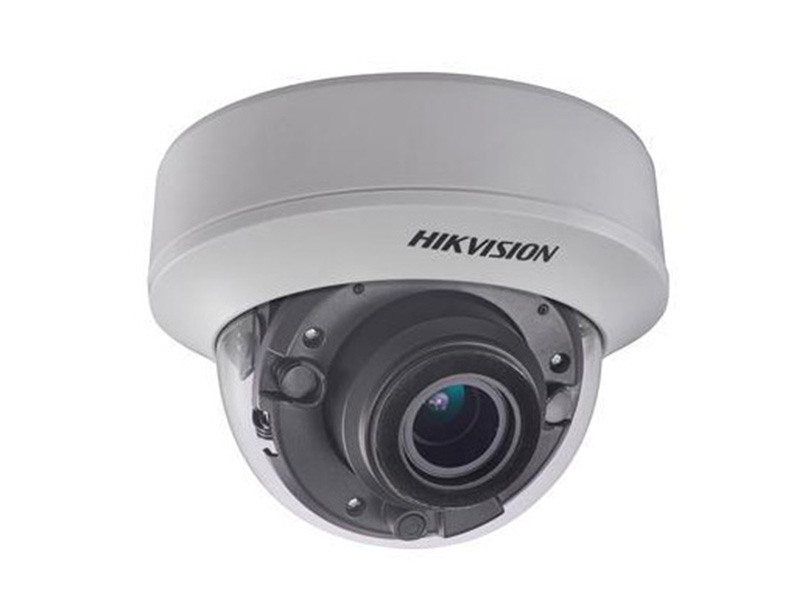

Hikvision DS 2CE56H1T ITZE AHD Dome Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 5MP CMOS Image Sensor |
Effective Pixels | 2560 (H) × 1944 (V) |
Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | Motorized VF lens; 2.8 to 12 mm |
Lens Mount | φ14 |
Adjustment Range | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 2560 × 1944 @ 20fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
Menu | |
D/N Mode | Auto / Color / B/W |
BLC | Support |
AGC | Support |
Language | English/Chinese |
Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±25%/PoC.at |
Power Consumption | Max. 8 W |
Weather Proof | IP65 |
IR Range | Up to 30m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | Φ 136 mm × 102 mm (Φ 5.35" × 4.02") |
Weight | Approx. 600 g (1.32 lb.) |
Hikvision DS 2CE56H1T ITZE AHD Dome Kamera Pdf Dosyası930.68 KB
Teknik Kısa
Çözünürlük : 5MP
