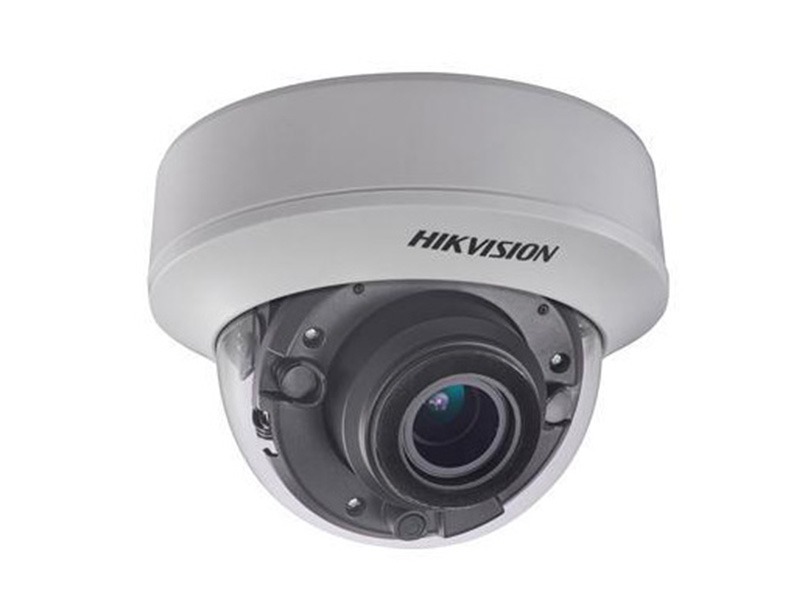

Hikvision DS 2CE56H0T AITZF AHD Dome Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.7-13.5mm motorized vari-focal lens
- True Day/Night
- OSD menu, 2D DNR, DWDR
- EXIR technology, up to 40m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- Up the Coax(HIKVISION-C)
Teknik Özellikler
Camera | |
Image Sensor | 5MP CMOS Image Sensor |
Effective Pixels | 2560 (H) × 1944 (V) |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens Mount | φ14 |
Adjustment Range | Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
Menu | |
D/N Mode | Auto / Color / B/W |
BLC | Support |
AGC | Support |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15%, 24 VAC±15% |
IR Range | Up to 40m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | Ø 136 mm × 101.9 mm ( Ø 5.35" × 4.01") |
Weight | DS-2CE56H0T-ITZF: 410 g (0.90 lb.) |
DS-2CE56H0T-AITZF: 445 g (0.98 lb.) |
Hikvision DS 2CE56H0T AITZF AHD Dome Kamera Pdf Dosyası953.7 KB
Teknik Kısa
Çözünürlük : 5MP
