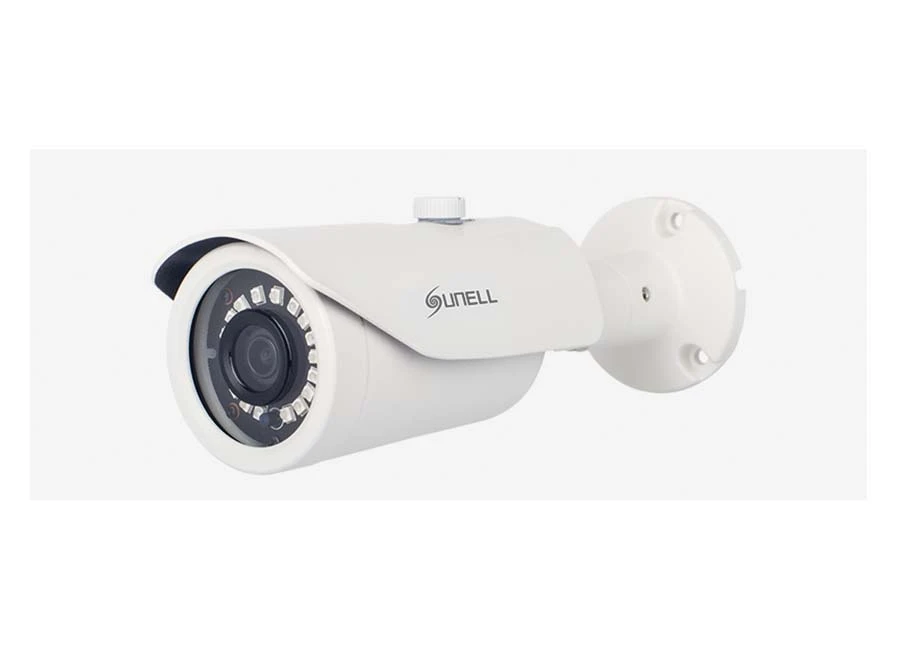

Sunell SN B1305BU AB3 AHD Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 2560(H) x 1920(V) |
| Scanning System | Progressive |
| Electronic Shutter | Auto, PAL:1/25-1/10000s, NTSC:1/30-1/10000s |
| Min. illumination | Color:0.05Lux@(F1.2,AGC ON) ; |
| B/W:0Lux@(IR LED ON) | |
| S/N Ratio | More than 48dB |
| IR Range | up to 20m |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 18pcs |
| OSD Joystick | Optional |
| Up the Coax | Support |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
| Lens | |
| Lens Type | Fixed |
| Iris | Fixed Iris |
| Focal Length | 3.6mm |
| F Number | F2.0 |
| Angle of View | 85° |
| Focus Control | Fixed |
| Close Focus Distance | 0.5m |
| Video | |
| Resolution | 5MP (2560×1920) |
| Frame Rate | 20fps |
| Video Output | AHD/TVI: 5MP 20fps/12.5fps, |
| 4MP 25fps/30fps/15fsp | |
| CVI: 25fps/30fps | |
| CVBS: PAL/NTSC | |
| Day/Night | Ext / AUTO / Color / B/W |
| OSD Menu | Support |
| Wide Dynamic Range | dWDR,OFF/ON |
| Gain Control | Auto |
| Noise Reduction | 2D DNR, MANUAL(1-10) |
| White Balance | Auto |
| BLC | Support |
| Mirror | Support |
| Motion Detection | N/A |
| Privacy Masking | N/A |
| General | |
| Power Supply | DC12V±10% |
| Power Consumption | Max. 3.5W (12V DC, IR ON) |
| Operating Temperature | -10 °C ~ 55 °C (14°F ~ 131 °F) |
| Operating Humidity | Less than 85% RH |
| Ingress Protection | IP66 |
| Certifications | CE/FCC |
| Casing | Metal |
| Dimensions | 196.4×67×63.1mm |
| Net Weight | 300g |
Sunell SN B1305BU AB3 AHD Bullet Kamera Pdf Dosyası509.64 KB
