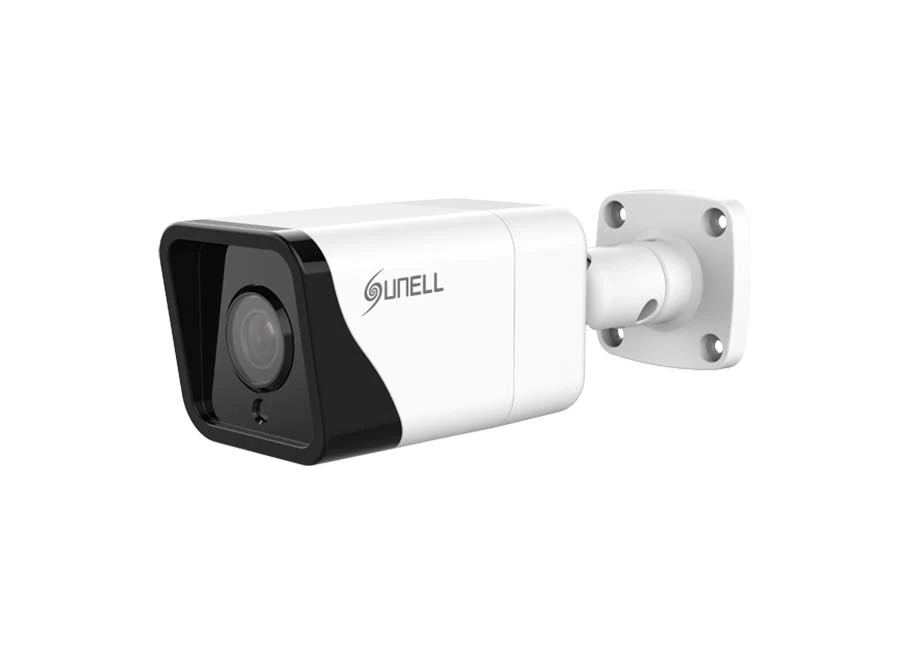

Sunell SN B1305BZ AZ5 AHD Bullet Kamera

Camera
Image Sensor	1/2.8” Progressive Scan CMOS
Effective Pixels	2560(H) x 1920(V)
Scanning System	Progressive
Electronic Shutter	Auto, PAL:1/25-1/10000s, NTSC:1/30-1/10000s
Min. illumination	Color:0.05Lux@(F1.2,AGC ON) ;
Min. illumination	B/W:0Lux@(IR LED ON)
S/N Ratio	More than 48dB
IR Range	up to 40m
IR On/Off Control	Auto/Manual
IR LEDs	30pcs
OSD Joystick	Optional
Up the Coax	Support
Pan/Tilt/Rotation Range	Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Lens
Lens Type	Motorized
Iris	Fixed Iris
Focal Length	2.7-13.5mm
F Number	F1.6
Angle of View	100°~35°
Focus Control	Motorized
Close Focus Distance	0.2m
Video
Resolution	5MP (2560×1920)
Frame Rate	20fps
Video Output	Support AHD/TVI/CVI/CVBS Output
Day/Night	Ext / AUTO / Color / B/W
OSD Menu	Support
Wide Dynamic Range	dWDR,OFF/ON
Gain Control	Auto
Noise Reduction	2D DNR, MANUAL(1-10)
White Balance	Auto
BLC	Support
Mirror	Support
Motion Detection	N/A
Privacy Masking	N/A
General
Power Supply	DC12V±10%
Power Consumption	Max. 4.5W (12V DC, IR ON)
Operating Temperature	-10 °C ~ 55 °C (14°F ~ 131 °F)
Operating Humidity	Less than 85% RH
Ingress Protection	IP67
Certifications	CE/FCC
Casing	Metal
Dimensions	232×74.8×80mm
Net Weight	650g
