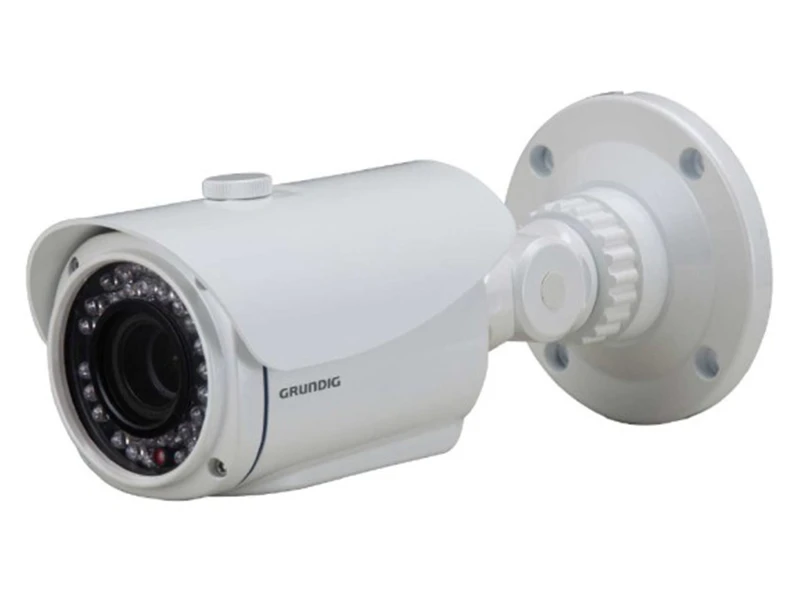

Grundig GCA B3326T Bullet Kamera
Özellikler
- Smart IR LED Control with adjustable level
- Varifocal Lens: f = 5 - 50 mm, auto iris, external adjustment
- Concealed Cable Management
- Remote Control Interfaces over Coax (Coaxitron)
- Built-in Service Monitor Port & OSD Control Port
- Video Enhancement: BLC, HLC, DNR, DIS
- 15 polygonal Privacy Zone Masking
- Extended Temperature range -25°C ~ +55°C
- Support Dual Power AC24V/DC12V
Teknik Özellikler
- Image Sensor: 1/3" CCD Sony 960H Ex-view HAD II
- Scanning System: PAL, 50Hz, 625L (V), 2:1 Inter Line Transfer
- Pixels - Effective: 976(H) x 582(V)
- Resolution: 650 (H) lines colour, 700 (H) lines b&w
- Col/B&W: On/Off/Auto/Ext, IR-cut filter removable (ICR)
- Sensitivity Colour: 0.8 lux(50IRE)@F1.4(SensUp=0, AGC Off), 0.00001 lux 15IRE (SensUpx512) F1.4
- Sensitivity B&W: 0 Lux LED IR on
- S/N Ratio: >52 dB
- Lens Focal Length: 5 ~ 50 mm
- Horizontal Viewing Angle: 51° (Wide) ~ 6.5° (Tele)
- Lens Drive Type: Auto iris (DC)
- Iris F-Number: F= 1.4 ~ 360
- Sens Up: Off ~ x512, auto
- Motion Detection: On/ Off/ Sensitivity/ Area setting
- Number of Privacy Zones: 15 (polygonal method)
- High Speed Shutter: 1/50 ~ 1/10.000 sec, auto
- BLC Back Light: On/Off/HLC
- WDR/ATR-EX: On/Off
- Digital Noise Reduction (DNR): On/Off (1~6 level)
- Digital Image Stabilization (DIS): Off/On
- OSD: Yes (DE,EN,FR,IT,RU,TR)
- Camera ID: 52 character over 2 lines
- White Balance: ATW/Push/User1/User2/AntiCR/Manual/Push Lock
- Focus Adjustment: Manual, external
- IR LED: 42 pcs.
- Optical Wavelength: 850 nm
- Max. IR Distance: 45/70 m (according to scene reflexion)
- Protection Rating: IP66
- Remote Control: Coaxitron, data on coax cable
- Video Outputs: 1 CVBS 1 Vpp (BNC) & 1 test monitor out
- Accessories included: Multi-Language Manual, Template, Cable for Service Monitor, Screws, screw driver for Zoom and Focus adjustment
- Humidity: less than 95%, non condensing
- Operating Temperature: -25°C ~ +55°C
- Supply Voltage: 12 Vdc / 24 Vac
- Power Consumption: 7.8 (LED on) W
- Weight: 1 kg
- Dimensions w*h*d: Ø 99 x 224 mm
