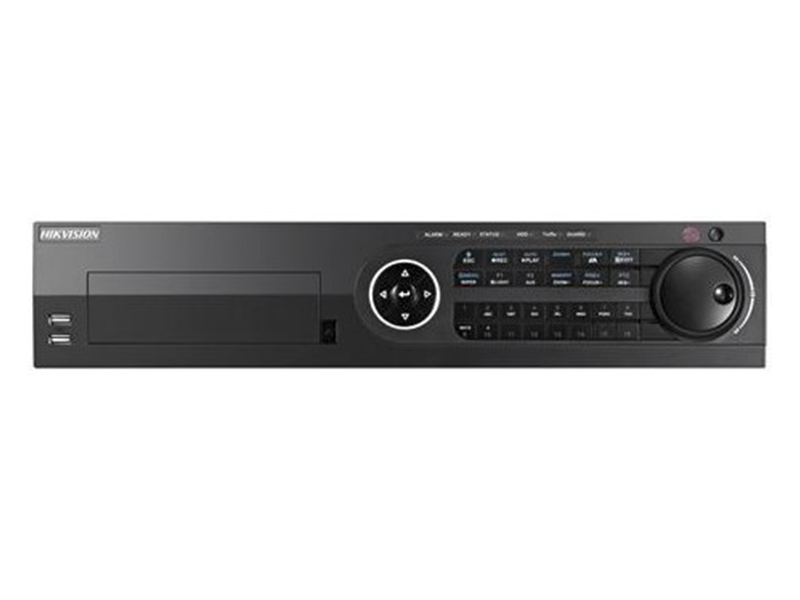

Hikvision DS 7316HQHI F4/N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- Up to 3 MP resolution for recording of the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N
- VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution
- Long transmission distance over coax cable
- Up to 4/8/16-ch synchronous playback at 1080p resolution
- playback at up to 256X speed.
- Support POS functions.
Teknik Özellikler
Video/Audio Input | |
Audio Input | 4-ch |
Video Compression | H.264,H.264+ |
Analog and HD-TVI video input | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N. | |
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
support CVBS input | |
Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
Audio Compression | G.711u |
Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | |
CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Output | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz |
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz | |
Recording resolution | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
Frame Rate | Main stream: |
When 1080p Lite mode not enabled: | |
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps | |
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
When 1080p Lite mode enabled: | |
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video Bit Rate | 32 Kbps-6 Mbps |
Stream Type | Video/Video&Audio |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output | 1-ch RCA(Linear, 1kΩ) |
Playback Resolution | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous Playback | 16-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
Hard Disk Driver | |
Interface Type | 4 SATA Interfaces |
Capacity | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
Alarm Input | 16-ch |
Alarm Output | 4-ch |
General | |
Power Supply | 100 to 240 VAC |
Consumption | ≤ 55W(without hard disks) |
Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity | 10% ~ 90% |
Dimensions | 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) |
Weight | ≤ 5 kg (11.0lb) |
Hikvision DS 7316HQHI F4/N Turbo HD DVR Kayıt Cihazı Pdf Dosyası727.65 KB
