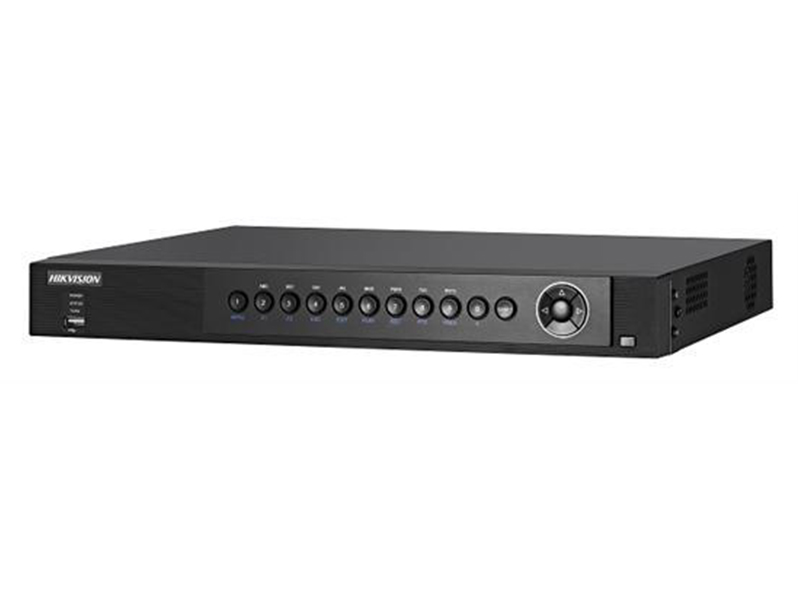

Hikvision DS 7616HUHI F2/N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- HDMI and VGA output can be configured simultaneous or independent. If simultaneous, up to 4K (3840 × 2160) resolution is supported; if independent, up to 1920 × 1080 resolution for VGA output and up to 4K (3840 × 2160) resolution for HDMI output
- Long transmission distance over coax cable
- 8/16-ch synchronous playback at 3MP resolution
- playback at up to 256X speed.
Teknik Özellikler
Video/Audio Input | |
Audio Input | 4-ch |
Video Compression | H.264,H.264+ |
Analog and HD-TVI video input | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
Support CVBS input | |
Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
Audio Compression | G.711u |
Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | |
CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Output | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz |
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz | |
Recording resolution | 3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame Rate | Main stream: |
3 MP@15fps; | |
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
Sub-stream: | |
WD1/4CIF@12fps; | |
CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
Video Bit Rate | 32 Kbps-10 Mbps |
Stream Type | Video/Video&Audio |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate | 64kbps |
Dual Stream | Support |
Playback Resolution | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous Playback | 16-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS |
Hard Disk Driver | |
Interface Type | 2 SATA Interfaces |
Capacity | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface | 1 USB 2.0 Interface & 1 USB 3.0 Interface |
Serial Interface | 1; standard RS-485 serial interface, half-duplex |
Alarm Input | 16-ch |
Alarm Output | 4-ch |
General | |
Power Supply | 12V DC |
Consumption | ≤ 20W(without hard disks) |
Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity | 10% ~ 90% |
Chassis | Standard 1U chassis |
Dimensions | 380 × 320 × 48 mm |
(14.9 × 12.6 × 18.9 inch ) | |
Weight | ≤ 2 k g (4.4 lb) g |
Hikvision DS 7616HUHI F2/N Turbo HD DVR Kayıt Cihazı Pdf Dosyası673.74 KB
