Açıklama

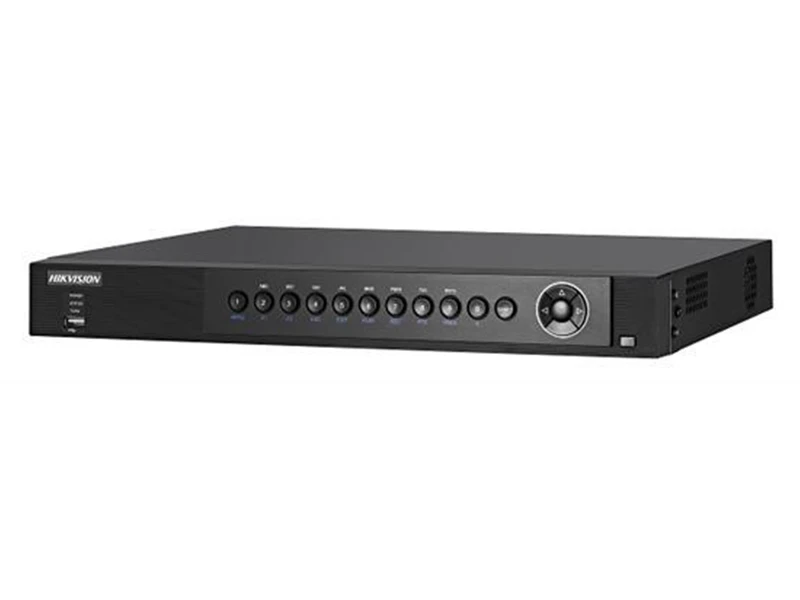

Hikvision DS 7204HUHI F2/S Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264+ & Dual-stream video compression
- Support HD-TVI/analog/AHD/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@5MP resolution non real-time recording
- HDMI output at up to 4K while VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 4/8-ch synchronous playback
Teknik Özellikler
Video/Audio Input | |
Audio Input | 4-ch |
Video Compression | H.264,H.264+ |
Analog and HD-TVI video input | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types | Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
Support CVBS input | |
Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
Audio Compression | G.711u |
Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
Video/Audio Output | |
CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution | Mainstream:5MP/4MP/3Mp/1080p/720p/WD1/4CIF/VGA/CIF |
Sub-stream:WD1/4CIF/CIF/QVGA/QCIF | |
Frame Rate | Main stream: |
5MP@10fps/4MP@15fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
Sub-stream: | |
WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
Video Bit Rate | 32 Kbps-10 Mbps |
Stream Type | Video/Video&Audio |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate | 64kbps |
Dual Stream | Support |
Playback Resolution | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
Synchronous Playback | 4-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
Hard Disk Driver | |
Interface Type | 2 SATA Interfaces |
Capacity | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
USB Interface | 2 USB 2.0 Interfaces |
Serial Interface | 1; standard RS-485 serial interface, half-duplex |
Alarm Input | 4-ch |
Alarm Output | 1-ch |
General | |
Power Supply | 12V DC |
Consumption | ≤ 15W(without hard disks) |
Working Temperature | -10 oC to +55 oC (14 oF to 131 oF) |
Working Humidity | 10% to 90% |
Chassis | 380mm 1U chassis |
Dimensions | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
Weight | ≤1.5 kg(3.3lb) |
Hikvision DS 7204HUHI F2/S Turbo HD DVR Kayıt Cihazı Pdf Dosyası675.27 KB
