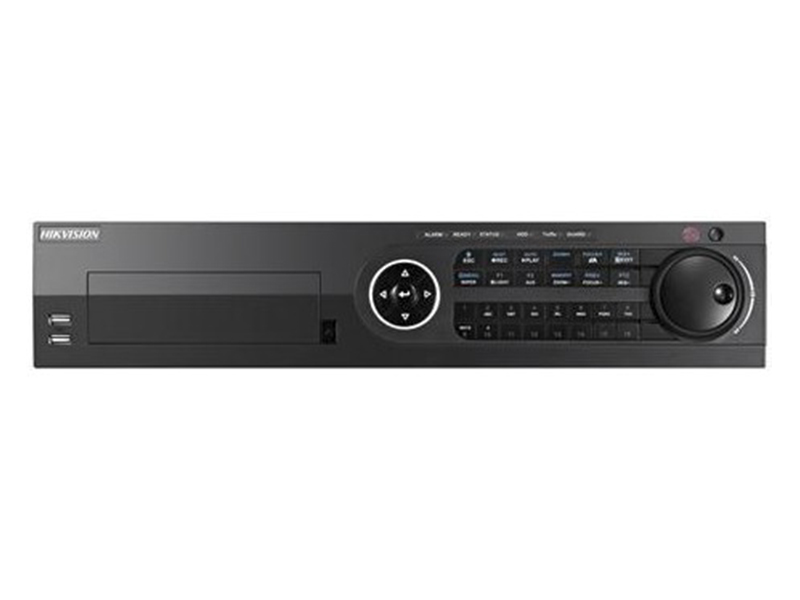

Hikvision DS 8104HQHI F8/N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Up to 3 MP resolution for recording of the first channel of DS-8104HQHI-F8/N, the first 2 channels of DS-8108HQHI-F8/N, and the first 4 channels of DS-8116HQHI-F8/N
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution
- Long transmission distance over coax cable
- Up to 4/8/16-ch synchronous playback at 1080p resolution
- Playback at up to 256X speed.
- Support POS functions.
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 4-ch |
| Video Compression | H.264,H.264+ |
| Analog and HD-TVI video input | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
| Note: The 3 MP signal input is only available for the first channel of DS-8104HQHI-F8/N, the first 2 channels of DS-8108HQHI-F8/N, and the first 4 channels of DS-8116HQHI-F8/N. | |
| Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
| support CVBS input | |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio | 1-ch RCA(2.0Vp-p, 1kΩ) |
| Video/Audio Output | |
| CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| HDMI/VGA Output | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz |
| VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz | |
| Recording resolution | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
| When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
| Frame Rate | Main stream: |
| When 1080p Lite mode not enabled: | |
| For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps | |
| For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode enabled: | |
| 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video/Video&Audio |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback | 4-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
| Hard Disk Driver | |
| Interface Type | 8 SATA Interfaces |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces |
| USB Interface | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
| Serial Interface | 1 RS-232 serial interface |
| 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface | |
| Alarm Input | 16-ch |
| Alarm Output | 4-ch |
| General | |
| Power Supply | 100 to 240 VAC |
| Consumption | ≤ 30W(without hard disks) |
| Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch) |
| Weight | ≤ 5 kg (11.0lb) |
Hikvision DS 8104HQHI F8/N Turbo HD DVR Kayıt Cihazı Pdf Dosyası721.89 KB
