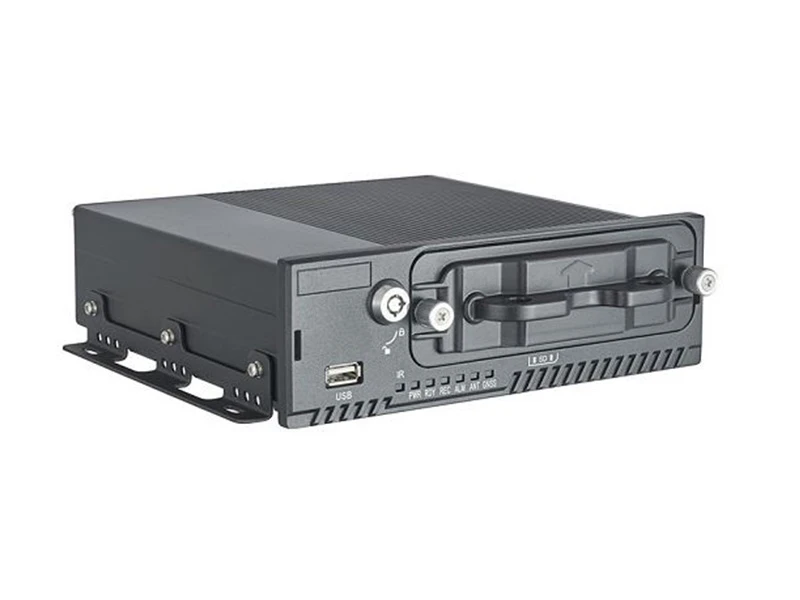

Hikvision DS M5504HM T Mobil DVR Kayıt Cihazı
Özellikler
- User-friendly GUI providing easy and flexible operations.
- Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.
- Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
- Hikvision private protocol (4000 protocol) and ONVIF supported.
- Accepts access of 4 HD TVI cameras with up to 720p resolution for each channel.
- Accepts access of 4 IP camera with up to 720p resolution for each channel (extendable via PoE switch).
- Pluggable dummy HDD for HDD with up to 2 TB capacity.
- Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
- Specialized aviation connectors ensuring signal stability.
- Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
- Battery protection avoids vehicle from running out of battery.
- Wide-range power input (+9 VDC to +32 VDC).
- Power-off protection prevents key data loss.
- Aluminum die-cast chassis with no fan design well adaptable to working environment.
- Software-based firewall supported.
- Connectable to PTZ camera and PTZ control is supported.
- Support accessing via WEB browser.
Teknik Özellikler
| Video/Audio input | |
| Analog camera | 4 analog cameras with up to 720p resolution |
| IP camera | 4 IP camera with up to 720p resolution (extendable via PoE switch) |
| Video/Audio output | |
| Video Output | Main output: 1, integrated in EXT.DEV interface |
| VGA: 1 | |
| Audio output | 1 |
| Encoding/Decoding parameters | |
| Video compression | H.264 and H.264+ |
| Encoding resolution | Main stream: 720p/WD1/4CIF. Sub-Stream: 4CIF/2CIF/CIF |
| Frame rate | PAL: 1 to 25fps; NTSC: 1 to 30fps |
| Audio compression | G.711 |
| Audio bitrate | 16 Kbps |
| Dual Streams | Supported |
| Hard Disk | |
| Type | 1 × 2.5 inch hard disk (HDD/SSD) |
| Capacity | Up to 2 TB for each disk |
| Wireless Network | |
| 3G/4G Dialing | Optional pluggable 3G(WCDMA)and 4G(FDD-LTE) |
| Wi-Fi | 802.11AC module,5.8GHz and 2.4GHz supported |
| Positioning | |
| Type | Built-in |
| Positioning Module | GPS(Global Positioning System) |
| External interface | |
| Network interface | 1 × 10M/100M RJ45 Ethernet interface |
| Serial interface | 2 × RS-232, 1 × RS-422 (integrated in EXT.DEV interface) |
| USB port | ● Front panel: 1 × USB 2.0 |
| ● Rear panel: 1 × USB 2.0 of 5-pin aviation connector | |
| SD Card | 1 SD/SDHC/SDXC slot, up to 256 GB |
| CAN Interface | None |
| General | |
| Operating method | Mouse, IR remote control, and Web control |
| Power Supply | Input: 9 to 32 VDC; Output: 12 VDC/1 A, 5 VDC/1 A |
| Consumption | ● Standby: ≤ 0.5 W |
| ● Full load: ≤ 45 W (without peripheral and storage media) | |
| Note: Without peripheral and storage media ≤ 20 W | |
| Working temperature | ● Device that provides dummy HDD with heating function: |
| -30 °C to +60 °C (-22 °F to 140°F) | |
| ● Other devices: | |
| -10 °C to +60 °C (14 °F to 140°F) | |
| Working humidity | 10% to 90% |
| Dimensions (W×D×H) | 206 × 219 × 60 mm (8.1 × 8.62 × 2.36 inch) |
| Weight (without HDDs/SSDs) | 1.6 kg (3.5 lb) |
