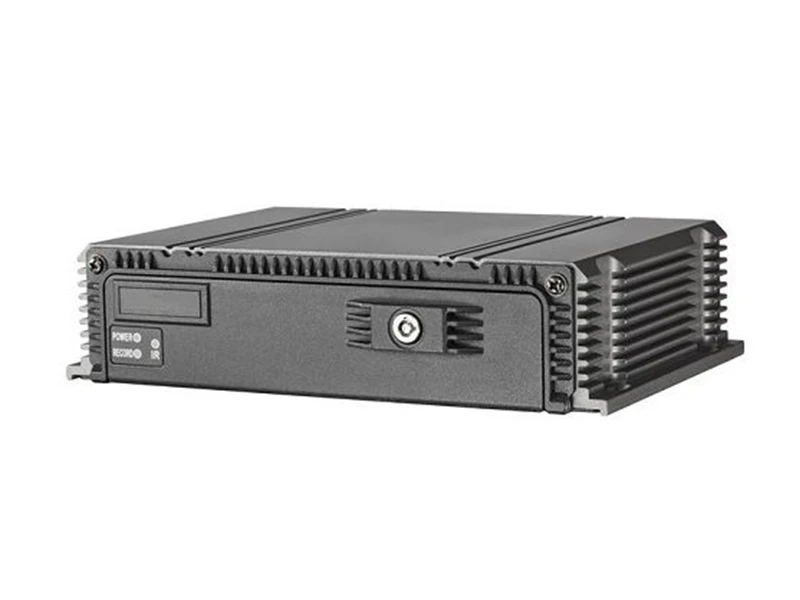

Hikvision DS MP3504 SD Mobil DVR Kayıt Cihazı
Özellikler
- 4-ch TVI camera of audio & video inputs connectable.
- Each channel supports up to 720p resolution with H.264/H.264+ encoding technology.
- 1-ch CVBS video output and 1-ch CVBS audio output.
- User-friendly GUI providing easy and flexible operations.
- 2 SD cards accessible. Up to 256 GB capacity for each.
- Power-off protection avoiding key data from loss.
- Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
- Specialized aviation connectors ensuring signal stability.
- Ignition start, delay (0 to 6 hours) shutdown and 24-hour scheduled startup/shutdown.
- Wide-range power input (+9 VDC to +32 VDC).
- Aluminum die-cast chassis with no-fan design well adaptable to working environment.
- Mirror image for rear view camera.
Teknik Özellikler
Video/Audio input | |
Analog camera | 4 HD-TVI cameras, aviation plug |
Audio input | 1-ch, linear (1.0 Vp-p, 1K Ω) |
Video/Audio output | |
Video Output | 1 CVBS output, resolution: PAL: 704 × 576, NTSC: 704 × 480 |
Audio output | 1, linear (2.0 Vp-p, 600 Ω) |
Encoding/Decoding parameters | |
Video compression | H.264 and H.264+ |
Encoding resolution | Main stream:720p/WD1/4CIF/2CIF/CIF, sub-stream: CIF/QCIF |
Frame rate | PAL: 1 to 25fps; NTSC: 1 to 30fps |
Audio compression | G.711 |
Audio bitrate | 16kbps |
Dual Streams | Supported |
Wireless Network | |
3G/4G Dialing | Optional pluggable 3G(WCDMA)and 4G(FDD-LTE) |
Wi-Fi | 802.11 b/g/n supported, 2.4GHz |
Positioning | |
Type | Pluggable Module Design |
External interface | |
Sensor-in | 4 high/low level signal inputs |
Alarm input | 3 high/low level signal inputs |
Alarm output | 2 relay signal outputs |
Network interface | 1 × RJ45 10M/100M self-adaptive Ethernet interface |
Serial interface | 1 × RS 232, 1 × RS 485 |
USB port | Front panel: 1 × USB 2.0 |
SD Card | 2 × SD card, up to 256 GB. (64 GB SD card is delivered by default) |
General | |
Operating method | Mouse, IR remote control, and Web control |
Power Supply | 9 to 32 VDC |
Consumption | Standby: ≤ 0.5 W |
Full load: ≤ 20 W (without peripheral and storage media) | |
Working temperature | -10 °C to +60 °C (14 °F to 140°F) |
Working humidity | 10% to 90% |
Dimensions (W×D×H) | 184 × 153 × 44 mm (7.2 × 6.0 × 1.7 inch) |
Weight (without HDDs/SSDs) | 0.87 kg (1.9 lb) |
Hikvision DS MP3504 SD Mobil DVR Kayıt Cihazı Pdf Dosyası691.84 KB
