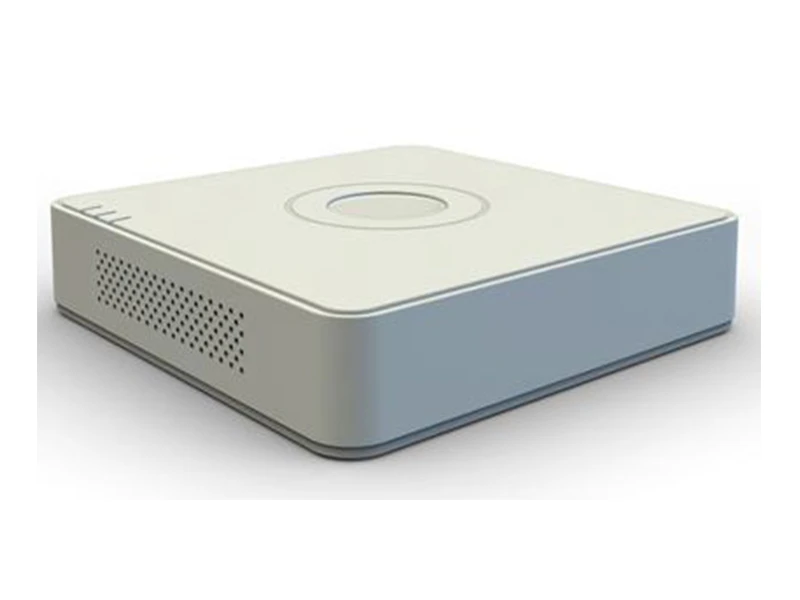

Hikvision DS 7108HQHI K1 Turbo HD DVR Kayıt Cihazı

Özellikler

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Up to 3 MP resolution for recording of channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Up to 2-ch 4 MP IP cameras input
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
4/8/16-ch synchronous playback

Teknik Özellikler

Video/Audio Input
Audio Input	1-ch
Video Compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input	8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types	3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
	Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of
	DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
	Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	Support CVI input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	support CVBS input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
Recording resolution	When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate	Main stream:
	When 1080p Lite mode not enabled:
	For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
	For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	3 MP@15fps
	1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps-6 Mbps
Stream Type	Video/Video&Audio
Audio Output	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate	64kbps
Dual Stream	Support
Playback Resolution	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback	8-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 6 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0 Interfaces
General
Power Supply	12V DC
Consumption	≤ 12W(without hard disks)
Working Temperature	-10 oC ~+55 oC (14 oF ~ 131 oF)
Working Humidity	10% ~ 90%
Chassis	Mini 1U chassis
Dimensions	200 × 200 × 45 mm
Dimensions	(7.9 × 7.9 × 1.8 inch)
Weight	≤ 1 kg (2.2 lb)
