Açıklama

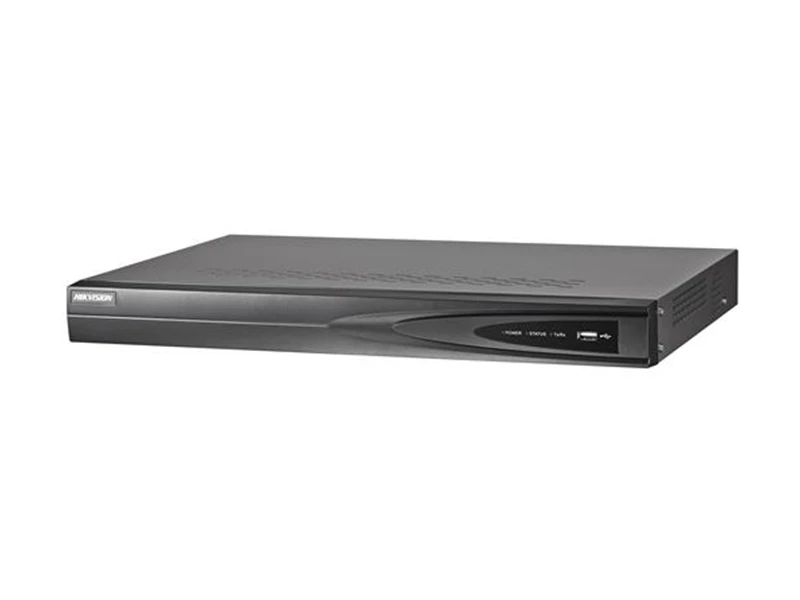

Hikvision DS 7616NI E2/16P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 6 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
- Up to 2 SATA interfaces
- Plug & Play with up to 8 independent PoE network interfaces
- Support network detection, including network delay, packet loss, etc
Teknik Özellikler
| Video/Audio Input | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 8-ch |
| Network | |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 160Mbps |
| Video/Audio Output | |
| HDMI Output | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Capability | 8-ch@1080P |
| Live view / Playback | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 6TB capacity for each HDD |
| External Interface | |
| USB Interface | 2, USB2.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| POE | |
| Interface | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
| General | |
| Power Supply | 100 to 200 VAC |
| Consumption(without hard disk and POE) | ≤ 15 W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 385 mm chassis |
| Dimensions | 385 × 315× 52 mm (15.2" 12.4" 2.0") |
| Weight(without HDD) | ≤ 3 kg (6.6 lb) |
Hikvision DS 7616NI E2/16P NVR Kayıt Cihazı Pdf Dosyası682.04 KB
