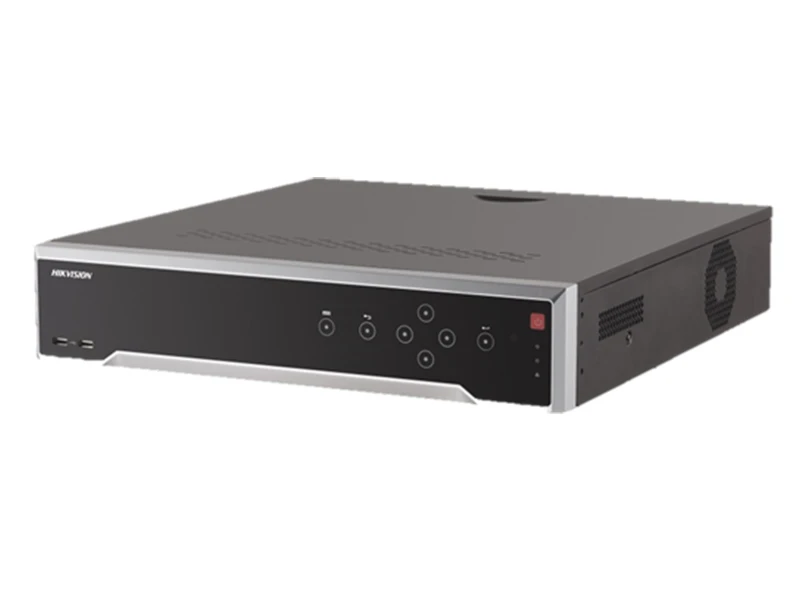

Hikvision DS 8632NI K8 NVR Kayıt Cihazı

Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
2 self-adaptive 10 M/100 M/1000 Mbps network interfaces, and two working modes are configurable: multi-address and network fault tolerance
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized

Video / Ses Girişi
İki Yönlü ses girişi	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP Video girişi	32-ch
Network
Incoming bandwidth	256Mbps
Outgoing bandwidth	160Mbps
Video/Audio Output
HDMI/VGA output	4-ch, VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560× 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; VGA2/HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Senkronize Yeniden Oynatma	16-ch
Decoding
Live view / Playback	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Capability	8-ch@1080P
Hard Disk
SATA	8 SATA interfaces for 8 HDDs
eSATA	1 eSATA interface
Kabiliyeti	Up to 6TB capacity for each HDD
Harici Arayüzü
Ağ Arayüzü	2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Seri bağlantı Arayüzü	RS-232, RS-485, Keyboard
USB Arayüzü	Front panel: 2 × USB 2.0
	Rear panel: 1 × USB 3.0
Alarm iç:	16-ch
Alarm dış	4-ch
General
Power	200 W
Güç Kaynağı	100 to 240 VAC, 50 to 60 Hz
Tüketim (hard disk ve POE olmadan)	≤ 30 W
Çalışma Sıcaklığı	-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Çalışma Nem oranı	10 % ~ 90 %
Kasa	2U chassis
Boyutlar	445 × 470 × 90 mm (17.5" × 18.5" × 3.5")
Ağırlık (HDD hariç)	≤ 8 kg (17.6 lb)
