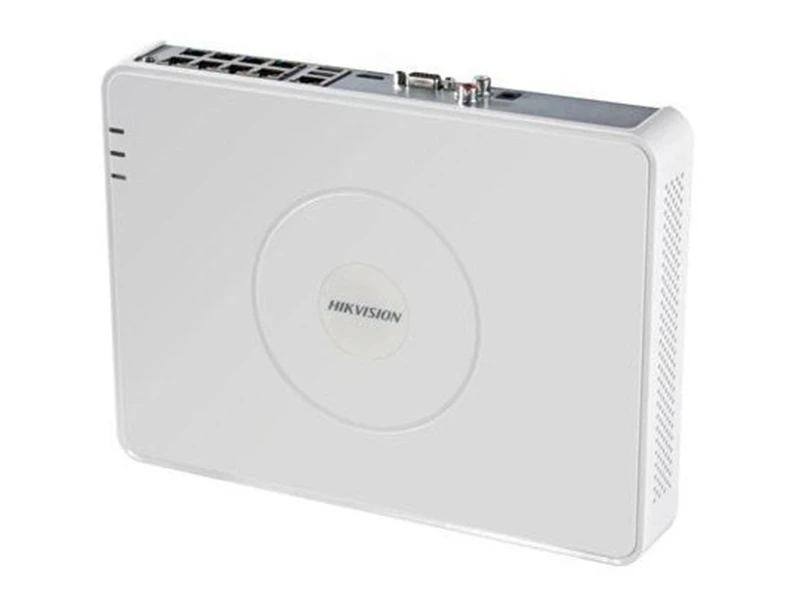

Haikon DS 7V04NI E1 4P NVR Kayıt Cihazı

Embedded MIni Wifi NVR
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
Up to 2-ch synchronous playback at 4 MP resolution or 4-ch at 1080p resolution
HDD quota and group modes; different capacity can be assigned to different channel
Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Video/Audio Input
IP video input:	4-ch
Two-way audio input:	1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth:	40Mbps
Outgoing bandwidth:	40Mbps
Video/Audio Output
HDMI/VGA output:	1-ch, resolution:
	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
	1024 × 768 /60Hz
Frame Rate:	Main stream: 50 fps (P) / 60 fps (N)
	Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output:	1-ch, RCA (Linear, 1kΩ)
Decoding
Capability:	4-ch@1080P
Hard Disk
SATA:	1 SATA interface for 1 HDD
Capacity:	Up to 6TB capacity for each HDD
External Interface
Built-in switch network interface:	4 independent 100 Mbps built-in
	switch network interfaces
Network Interface:	1 RJ-45 10 / 100 Mbps selfadaptive
	Ethernet interface
USB Interface:	2, USB2.0
POE
Interface:	4 independent 100 Mbps PoE
	network interfaces
Max. Power:	50W
Supported Standard:	AF and AT
General
Power Supply:	48 VDC
Consumption(without hard disk and POE):	≤ 60 W
Working Temperature:	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:	10 % ~ 90 %
Chassis:	Stand-alone 1U chassis
Dimensions:	200 × 205 × 48 mm
	(7.9" × 8.1" × 1.9")
Weight(without HDD):	≤ 1 kg (2.2 lb)
