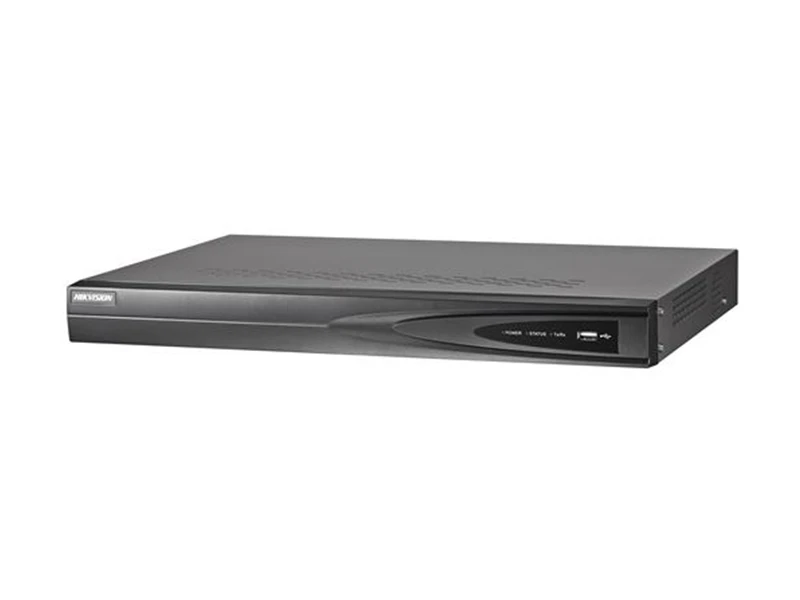

Hikvision DS 7604NI K1(B) NVR Kayıt Cihazı

Third-party network cameras supported
Up to 8 Megapixels resolution recording
Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
1 self-adaptive 10/100/1000 Mbps network interface
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
Support various VCA detection alarm and VCA search
Support H.265+/H.265/H.264+/H.264/MPEG4 video formats

Video/Audio Input
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input	4-ch
Network
Incoming bandwidth	40Mbps
Outgoing bandwidth	80Mbps
Video/Audio Output
HDMI Output	1-ch, resolution: 4K(38402160)/60Hz, 4K(38402160)/30Hz, 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output	1-ch, RCA (Linear, 1kΩ)
VGA Output	1-ch, resolution: 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Decoding
Capability	1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
SATA	1 SATA interface for 1 HDD
Capacity	Up to 6TB capacity for each HDD
External Interface
Network Interface	1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface	2, USB2.0
General
Power Supply	12 VDC
Consumption(without hard disk and POE)	≤ 10 W
Working Temperature	-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity	10 % ~ 90 %
Chassis	1U chassis
Dimensions	315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD)	≤ 1 kg (2.2 lb)
