Açıklama

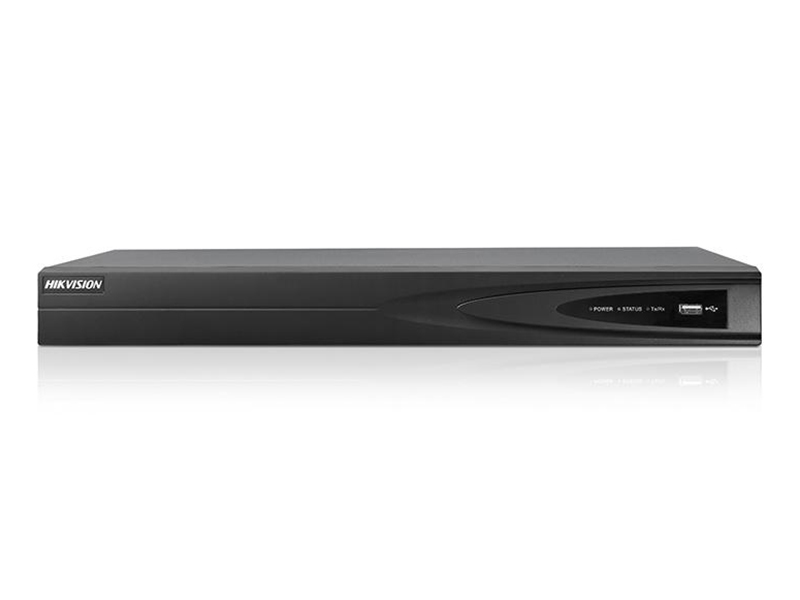

Hikvision DS 7R04NI E1 NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 6 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
- Up to 2 SATA interfaces
- Support network detection, including network delay, packet loss, etc.
Teknik Özellikler
| Video/Audio Input | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 4-ch |
| Network | |
| Remote connection | 128 |
| Incoming bandwidth | 40Mbps |
| Outgoing bandwidth | 80Mbps |
| Video/Audio Output | |
| HDMI/VGA output | 1-ch, resolution: |
| 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, | |
| 1024 × 768 /60Hz | |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame Rate | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback | 4-ch |
| Decoding | |
| Capability | 4-ch@1080P |
| Live view / Playback | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | |
| SATA | 1 SATA interface for 1 HDD |
| Capacity | Up to 4TB for each disk |
| External Interface | |
| Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In | 4-ch(optional) |
| Alarm Out | 1-ch(optional) |
| General | |
| Power Supply | 12V DC |
| Consumption(without hard disk and POE) | ≤ 10W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 1U chassis |
| Dimensions | 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch) |
| Weight(without HDD) | ≤ 1 kg |
Hikvision DS 7R04NI E1 NVR Kayıt Cihazı Pdf Dosyası750.08 KB
