Açıklama

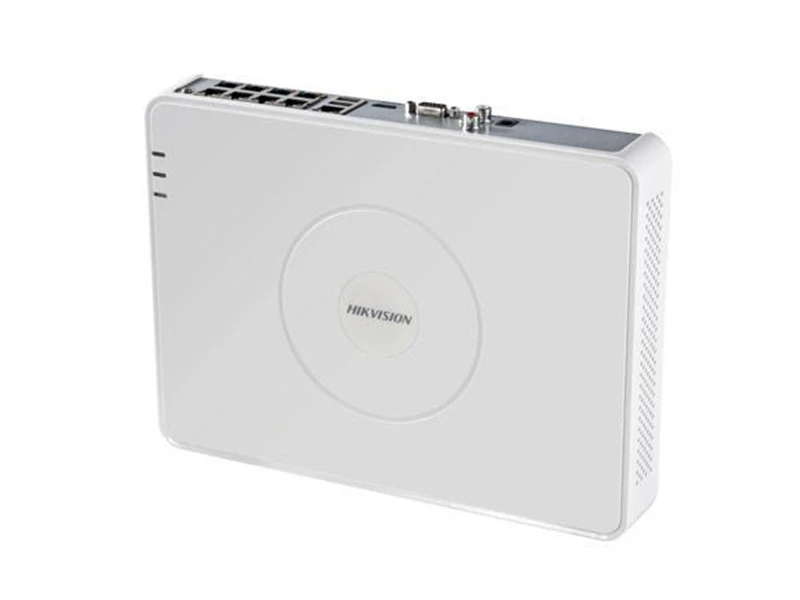

Hikvision DS 7W04NI E1/4P NVR Kayıt Cihazı
Özellikler
- H.264+ compression effectively reduces the storage space and costs by up to 50%
- Full channel recording at up to 4 MP resolution
- Up to 2-ch synchronous playback at 4 MP resolution or 4-ch at 1080p resolution
- HDD quota and group modes; different capacity can be assigned to different channel
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Teknik Özellikler
Video/Audio Input | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP video input | 4-ch |
Network | |
Incoming bandwidth | 40Mbps |
Outgoing bandwidth | 40Mbps |
Video/Audio Output | |
HDMI/VGA output | 1-ch, resolution: |
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, | |
1024 × 768 /60Hz | |
Frame Rate | Main stream: 50 fps (P) / 60 fps (N) |
Sub-stream: 50 fps (P) / 60 fps (N) | |
Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
Decoding | |
Capability | 4-ch@1080P |
Hard Disk | |
SATA | 1 SATA interface for 1 HDD |
Capacity | Up to 6TB capacity for each HDD |
External Interface | |
Built-in switch network interface: | 4 independent 100 Mbps built-in |
switch network interfaces | |
Network Interface | 1 RJ-45 10 / 100 Mbps selfadaptive |
Ethernet interface | |
USB Interface | 2, USB2.0 |
POE | |
Supported Standard | AF and AT |
Interface | 4 independent 100 Mbps PoE |
network interfaces | |
Max. Power | 50W |
General | |
Power Supply | 48 VDC |
Consumption(without hard disk and POE) | ≤ 60 W |
Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Working Humidity | 10 % ~ 90 % |
Chassis | Stand-alone 1U chassis |
Dimensions | 200 × 205 × 48 mm |
(7.9" × 8.1" × 1.9") | |
Weight(without HDD) | ≤ 1 kg (2.2 lb) |
