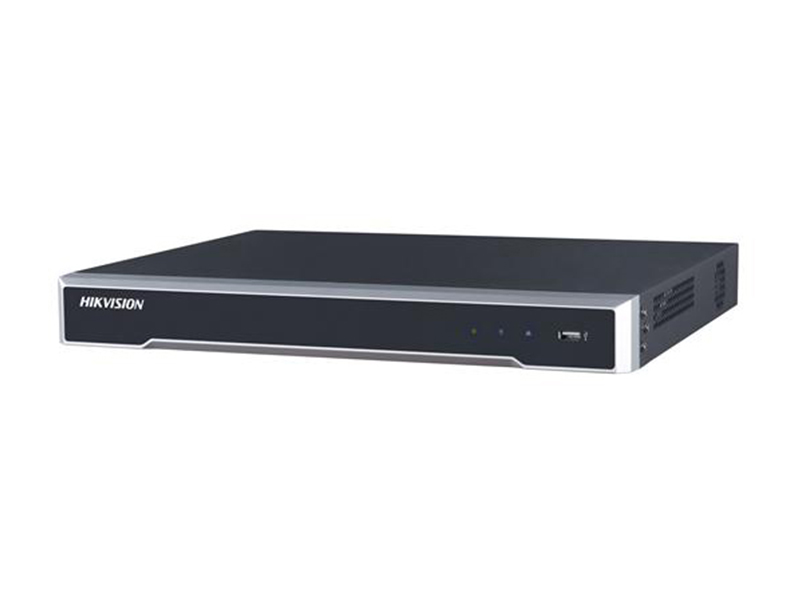

Hikvision DS 7608NI Q2/8P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
realized - VCA detection alarm is supported
- Hik-Connect for easy network management
Teknik Özellikler
Video/Audio Input | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP video input | 8-ch |
Network | |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 80Mbps |
Video/Audio Output | |
HDMI Output | 1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
Hard Disk | |
SATA | 2 SATA interfaces |
Capacity | Up to 6TB capacity for each HDD |
External Interface | |
Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
USB Interface | 2, USB2.0 |
POE | |
Supported Standard | AF and AT |
Interface | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
Max. Power | 80W |
General | |
Power Supply | 100 to 240 VAC |
Power | ≤ 180W |
Consumption(without hard disk and POE) | ≤ 15W |
Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Working Humidity | 10 % ~ 90 % |
Chassis | 1U chassis |
Dimensions | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
Weight(without HDD) | ≤ 3 kg (6.6 lb) |
Hikvision DS 7608NI Q2/8P NVR Kayıt Cihazı Pdf Dosyası672.86 KB
