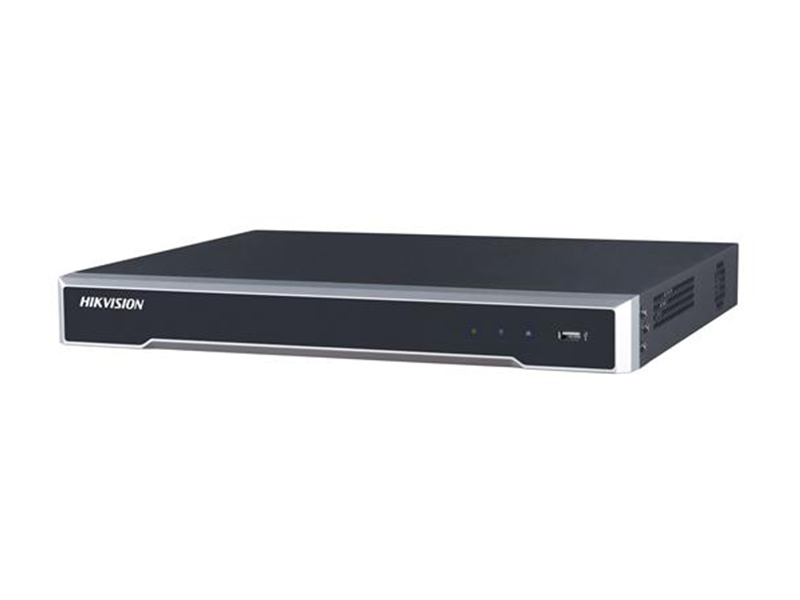

Hikvision DS 7608NI Q2 NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
realized - VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
Teknik Özellikler
Video/Audio Input | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP video input | 8-ch |
Two-way Audio | 2-ch, BNC(2.0Vp-p, 1kΩ) |
Network | |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 80Mbps |
Video/Audio Output | |
HDMI/VGA output | 1-ch, resolution: |
1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | |
Audio Output | 1-ch, RCA (Linear, 1kΩ) |
VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
Live view / Playback | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Hard Disk | |
SATA | 2 SATA interfaces |
Capacity | Up to 6TB capacity for each HDD |
External Interface | |
Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
USB Interface | 2, USB2.0 |
General | |
Power Supply | 12 VDC |
Power | ≤ 40W |
Consumption(without hard disk and POE) | ≤ 15W |
Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Working Humidit | 10 % ~ 90 % |
Chassis | 1U chassis |
Dimensions | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
Weight(without HDD) | ≤ 1 kg (2.2 lb) |
Hikvision DS 7608NI Q2 NVR Kayıt Cihazı Pdf Dosyası655.42 KB
