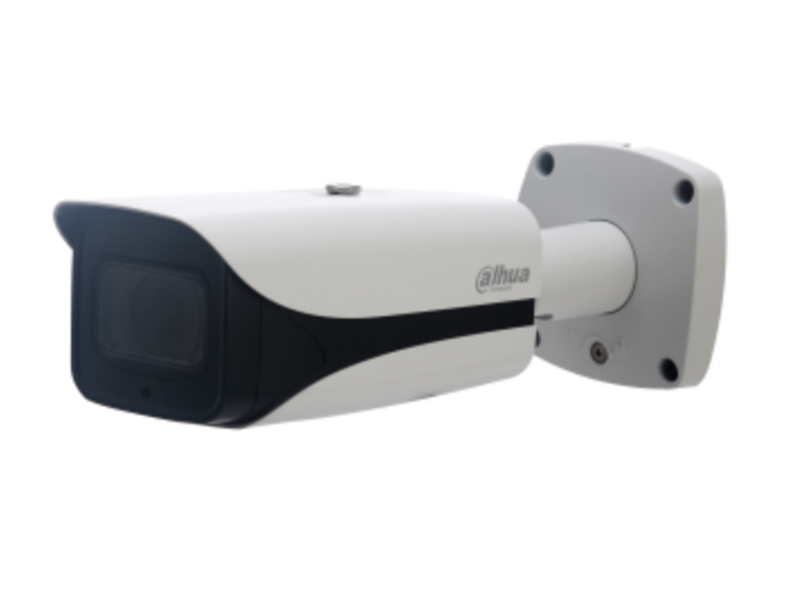

Dahua HAC HFW3802E ZH VP HDCVI Bullet Kamera
Özellikler
- 1/2” 8Megapixel progressive scan CMOS
- 3x optical motorized zoom lens
- Max. 15fps@3840×2160
- 120db true WDR,2D&3D NR
- Intelligent functions
- Max.100m IR distance,smart IR
- IP67&IK10 ingress protection
- Dual voltage input(DC 12v±25%/AC 24V±25%)
- DC12V voltage output
- Up to 500m transmission with RG59 coaxial cable
Teknik Özellikler
| Camera | |||
| Image Sensor | 1/2" CMOS | ||
| Effective Pixels | 3840(H)×2160(V), 8MP | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | 1/1s~1/100,00s | ||
| Minimum Illumination | 0.01Lux/F1.5(Color), 30IRE,0lux/F1.5(B/W) | ||
| S/N Ratio | More than 65dB | ||
| IR Distance | Up to 100m (328feet) | ||
| IR On/Off Control | Auto / Manual | ||
| IR LEDs | 4 | ||
| Lens | |||
| Lens Type | Motorized lens / Auto iris | ||
| Mount Type | Board-in | ||
| Focal Length | 3.7-11mm | ||
| Max Aperture | F1.5 | ||
| Angle of View | H: 112°~46° | ||
| Focus Control | Auto / Manual | ||
| Close Focus Distance | 200mm(7.87") | ||
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
DORI
Definition | Distance | ||
| Wide | Tele | ||
| Detect | 25px/m (8px/ft) | 83m(273ft) | 190m(624ft) |
| Observe | 63px/m (19px/ft) | 33m(109ft) | 76m(250ft) |
| Recognize | 125px/m (38px/ft) | 17m(54ft) | 38m(125ft) |
| Identify | 250ppm (76px/ft) | 8m(27ft) | 19m(62ft) |
| Pan / Tilt / Rotation | |||
| Pan/Tilt/Rotation | Pan: 0° ~ 360° | ||
| Tilt: 0° ~ 90° | |||
| Rotation: 0° ~ 360° | |||
| Video | |||
| Resolution | 8MP (3840×2160) | ||
| Frame Rate | PAL:3840×,2560x1440@25fps; NTSC:3840×2160@15fps,2560x1440@30fps; | ||
| Video Output | 1-channel HDCVI video output & 1-channel CVBS video output | ||
| Day/Night | Auto (ICR) / Manual | ||
| OSD Menu | Multi-language | ||
| BLC Mode | BLC / HLC / WDR | ||
| WDR | 120dB | ||
| Gain Control | AGC | ||
| Noise Reduction | 2D/3D | ||
| White Balance | Auto / Manual | ||
| Smart IR | Auto / Manual | ||
| Certifications | |||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||
| Interface | |||
| Audio Interface | 1-channel audio in | ||
| Alarm I/O | 2.1 | ||
| Eelectrical | |||
| Power Supply | 12V DC ±25%/24V AC ±25% | ||
| Power Output | DC 12V/Max 4W | ||
| Power Consumption | Max 18.4W | ||
| Environmental | |||
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F) | ||
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | ||
| Ingress Protection & Vandal Resistance | IP67&IK10 | ||
| Construction | |||
| Casing | Aluminium | ||
| Dimensions | 273.2mm×95.0mm×95.0mm (10.76"×3.74"×3.74") | ||
| Net Weight | 1.08kg (2.38lb) | ||
| Gross Weight | 1.33kg (2.93lb) | ||
Dahua HAC HFW3802E ZH VP HDCVI Bullet Kamera Pdf Dosyası894.6 KB
