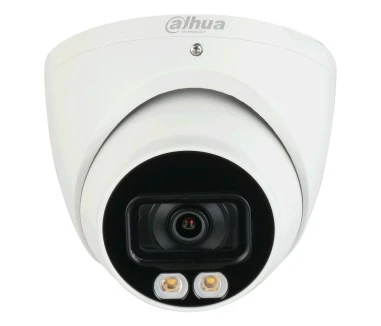

Dahua HAC-HDW2509TLM-A-LED HDCVI Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor | 5MP CMOS | ||||
| Max. Resolution | 2880 (H) × 1620 (V) | ||||
| Pixel | 5MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s | ||||
| NTSC: 1/4 s–1/100,000 s | |||||
| S/N Ratio | > 65 dB | ||||
| Min. Illumination | 0.0002 Lux/F1.0, 0 Lux warm light on | ||||
| Illumination Distance | 20 m (65.6 ft) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 1 (Warm light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F1.0 | ||||
| Field of View | 2.8 mm: H: 111°; V: 57°; D: 131° | ||||
| 3.6 mm: H: 88°; V: 46°; D: 104° | |||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 1.5 m (4.9 ft) | ||||
| 3.6 mm: 2.3 m (7.5 ft) | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 66 m | 26.4 m | 13.2 m | 6.6 m | |
| (216.5 ft) | (86.6 ft) | (43.3 ft) | (21.7 ft) | ||
| 3.6 mm | 80 m | 32 m | 16 m | 8 m | |
| (262.5 ft) | (105 ft) | (52.5 ft) | (26.2 ft) | ||
| Video | |||||
| Frame Rate | CVI: | ||||
| PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps | |||||
| NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps | |||||
| AHD: | |||||
| PAL: 4M@25 fps; | |||||
| NTSC: 4M@30 fps | |||||
| TVI: | |||||
| PAL: 4M@25 fps; | |||||
| NTSC: 4M@30 fps | |||||
| CVBS: | |||||
| PAL: 960H; | |||||
| NTSC: 960H | |||||
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); | ||||
| BLC | BLC/HLC/WDR/HLC-Pro | ||||
| WDR | 120 dB | ||||
| White Balance | Auto; Area white balance | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 3D NR | ||||
| Smart Illumination | Yes | ||||
| Defog | Electronic defog | ||||
| Digital Zoom | 4× | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) | ||||
| Audio Input | One channel built-in mic | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 4.4 W (12 VDC, warm light on) | ||||
| Environment | |||||
| Operating Temperature | –40 °C to +60° C (–40 °F to 140 °F); < 95% (non-condensation) | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal throughout the whole casing | ||||
| Camera Dimensions | φ94 mm × 85.7 mm (φ3.7" × 3.37") | ||||
| Net Weight | 0.35 kg (0.77 lb) | ||||
| Gross Weight | 0.49 kg (1.08 lb) | ||||
Dahua HAC-HDW2509TLM-A-LED, HDCVI Eyeball Kamera Pdf Dosyası431.36 KB
