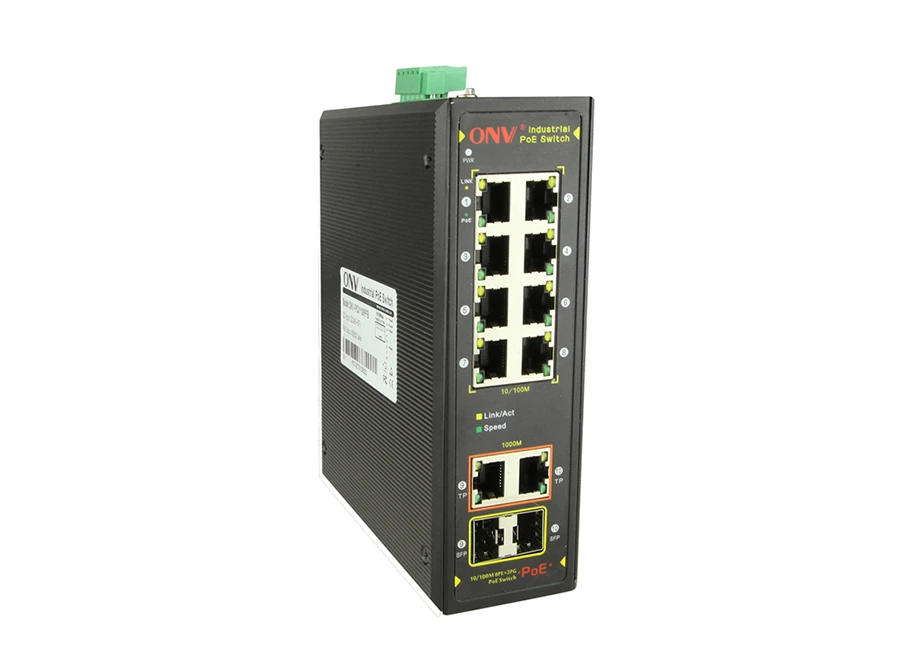

ONV ONV-IPS31108PFB Endüstriyel PoE Switch

Özellikler

Unmanaged industrial PoE fiber switch with 8*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M uplink SFP slot ports (Combo port).
Port 1-8 can support IEEE802.3af/at PoE standard.
It can support DC dual redundant power input and DIN rail mounting.

Teknik Özellikler

Model	ONV-IPS31108PFB
Interface Characteristics
Fixed Port	8*10/100Base-TX PoE ports (Data/Power)
	2*10/100/1000Base-T uplink RJ45 ports (Data)
	2*100/1000Base-X uplink SFP slot ports (Combo port)(Data)
	2 group of V+, V- redundant DC power interface (5 Pin Phoenix terminal)
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T: Cat5e or later UTP(≤100 meter)
Ethernet Port	Port 1-8 support 10/100Base-TX, Port 9-10 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
SFP Slot Port	Gigabit SFP optical fiber interface, default no include optical modules (optional order single-mode/multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0~500M; 1310nm /0~2kM,
Optical Cable/ Distance	Single-mode: 1310nm /0~40KM,1550nm/ 0-120KM.
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
Network Protocol	IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	5.6Gbps
Forwarding	4.17Mpps
Rate@64byte
MAC	16K
Buffer Memory	4M
Jumbo Frame	10K
LED Indicator	Power: PWR (Green), Network: Link,link/Act (Yellow),
LED Indicator	Rate: Speed (Green) , PoE: PoE (Green)
PoE & Power Supply
PoE Port	Port 1-8
Power Supply Pin	Default 1/2 (+), 3/6 (-)
Max Power Per Port	30W, IEEE802.3af/at
Power Consumption	Standby<8W, Full load:af<120W,at<240W
Working Voltage	48-57VDC, 5 Pin industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation TEMP / Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	16514854mm
Net /Gross Weight	<1.3kg / <1.8 kg
Installation	Desktop, 35mm DIN rail
Certification & Warranty
Lightning Protection	Lightning protection: 6KV 8/20us; Protection level: IP40
	IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
	IEC61000-4-3(RS):10V/m(80~1000MHz)
	IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
	IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
	IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
	IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
	IEC61000-4-9(pulsed magnet field):1000A/m
	IEC61000-4-10(damped oscillation):30A/m 1MHz
	IEC61000-4-12/18(Shockwave):CM 2.5kV,DM 1kV
	IEC61000-4-16(common-mode transmission):30V; 300V,1s
	FCC Part 15/CISPR22(EN55022):Class B
	IEC61000-6-2(Common Industrial Standard)
Mechanical Properties	IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock)
Mechanical Properties	IEC60068-2-32 (free fall)
Certification	CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS
Warranty	5 years, lifelong maintenance.
