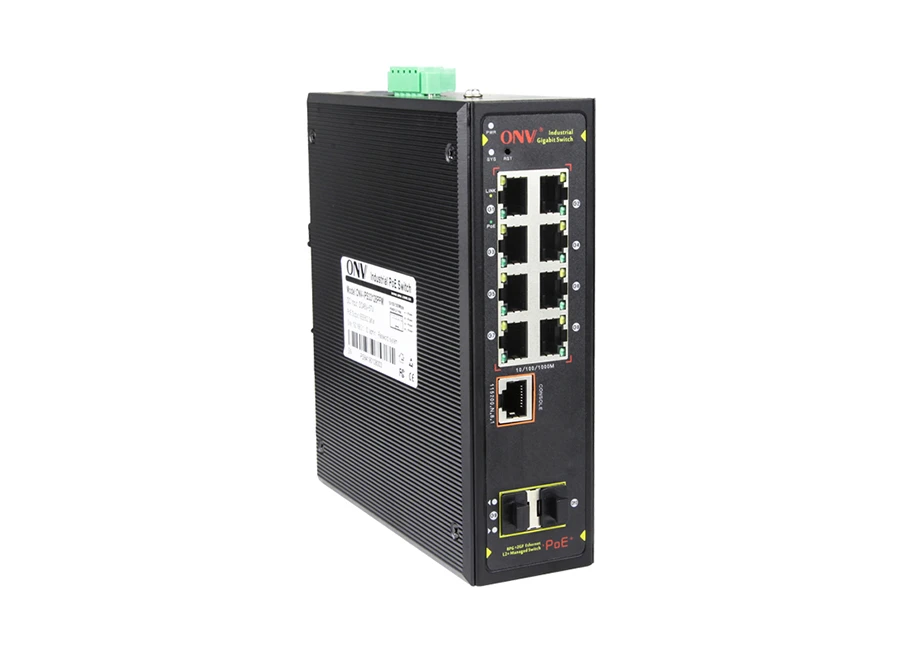

ONV ONV-IPS33010PFM Endüstriyel PoE Switch
Özellikler
Teknik Özellikler
Model | ONV-IPS33010PFM |
Interface Characteristics | |
Fixed Port | 8*10/100/1000Base-T PoE ports (Data/Power) |
2*100/1000Base-X uplink SFP slot ports (Data) | |
1 * RS232 console port(115200,N,8,1) | |
2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) | |
Ethernet Port | Port 1-8 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
100BASE-TX: Cat5 or later UTP(≤100 meter) | |
1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Optical Cable/ Distance | Multi-mode: 850nm/0 ~ 550M, single-mode: 1310nm/0 ~ 40KM, 1550nm/0 ~ 120KM. |
Chip Parameter | |
Network Management Type | L2+ |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX |
IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 128Gbps |
Forwarding | 14.88Mpps |
Rate@64byte | |
MAC | 8K |
Buffer Memory | 4.1M |
Jumbo Frame | 10K |
CPU(Hz) | 500M |
DRAM | 1G |
Flash | 128M |
LED Indicator | Power: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green), PoE: PoE (Green) |
Reset Switch | Yes. Press and hold the reset switch for 10 seconds and release it to restore factory settings |
PoE & Power Supply | |
PoE Port | Port 1 to port 8 |
PoE Management | PoE working status |
Delay start of power supply | |
PoE output priority configuration | |
Scheduling of PoE operation and time | |
Total power limit of PoE power supply | |
PoE output power allocation, off& af &at | |
Power Supply Pin | 1/2 (+), 3/6 (-) |
Max Power Per Port | 30W, IEEE802.3af/at |
Total Power/ Input Voltage | 120W/48VDC |
Power Consumption | Standby<8W, Full load<120W |
Input Voltage/ Interface | 48-57VDC, 5P industrial phoenix terminal, support anti-reverse protection. |
Power Supply | No, optional 48V/120W or 48V/240W industrial power supply |
Physical Parameter | |
Operation TEMP / Humidity | -40~+75°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) | 165*148*54mm |
Net /Gross Weight | <0.8kg / <1.2kg |
Installation | Desktop, DIN rail |
Certification & Warranty | |
Lightning Protection/ Protection Level | Lightning protection: 6KV 8/20us; Protection level: IP40 |
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge | |
IEC61000-4-3(RS):10V/m(80~1000MHz) | |
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV | |
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV | |
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) | |
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s | |
IEC61000-4-9(pulsed magnet field):1000A/m | |
IEC61000-4-10(damped oscillation):30A/m 1MHz | |
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV | |
IEC61000-4-16(common-mode transmission):30V; 300V,1s | |
FCC Part 15/CISPR22(EN55022):Class B | |
IEC61000-6-2(Common Industrial Standard) | |
Mechanical Properties | IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock) |
IEC60068-2-32 (free fall) | |
Certification | CCC,CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B; RoHS |
Warranty | 5 years, lifelong maintenance. |
Network Management Features | |
Interface | IEEE802.3X (Full-duplex) |
Port temperature protection setting | |
Port green Ethernet Energy-saving setting | |
Broadcast storm control based on port speed | |
The speed limit of the message flow in the access port. | |
The minimum particle size is 64Kbps. | |
Layer 3 Features | L2+ network management ,IPV4 management |
Static route, Default route @ 128 pcs, APR @ 1024 pcs | |
VLAN | 4K VLAN based on port, IEEE802.1q |
VLAN based on the protocol, VLAN based on MAC | |
QinQ configuration, Port configuration of Access, Trunk, Hybrid | |
Port Aggregation | LACP, Static aggregation, Max 5 aggregation groups and 8 ports per group. |
Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) |
Industrial Ring Network Protocol | 250 Ring at most, Max 250 devices per ring. |
Multicast | MLD Snooping v1/v2,Multicast VLAN |
IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out | |
Port Mirroring | Bidirectional data mirroring based on port |
QoS | Flow-based Rate Limiting |
Flow-based Packet Filtering | |
8*Output queues of each port | |
802.1p/DSCP priority mapping | |
Diff-Serv QoS,Priority Mark/Remark | |
Queue Scheduling Algorithm (SP, WRR, SP+WRR) | |
ACL | Port-based Issuing ACL,ACL based on port and VLAN |
L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. | |
Security | IP-MAC-VLAN-Port binding |
ARP inspection,Anti-DoS attack | |
AAA & RADIUS,MAC learning limit | |
Mac black holes,IP source protection | |
IEEE802.1X & MAC address authentication | |
Broadcast storm control,Backup for host datum | |
SSH 2.0,SSL,Port isolation,ARP message speed limit | |
User hierarchical management and password protection | |
DHCP | DHCP Client,DHCP Snooping,DHCP Server,DHCP Relay |
Management | One-key recovery |
Cable Diagnose,LLDP | |
Web Management (HTTPS) | |
NTP,System work log,Ping Test | |
CPU instant utilization status view | |
Console/AUX Modem/Telnet/SSH2.0 CLI | |
Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 | |
ONV NMS - smart network management system platform(LLDP+SNMP) | |
System | Category 5 Ethernet network cable |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; | |
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
ONV ONV-IPS33010PFM Endüstriyel PoE Switch Pdf Dosyası389.73 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 8 Port
