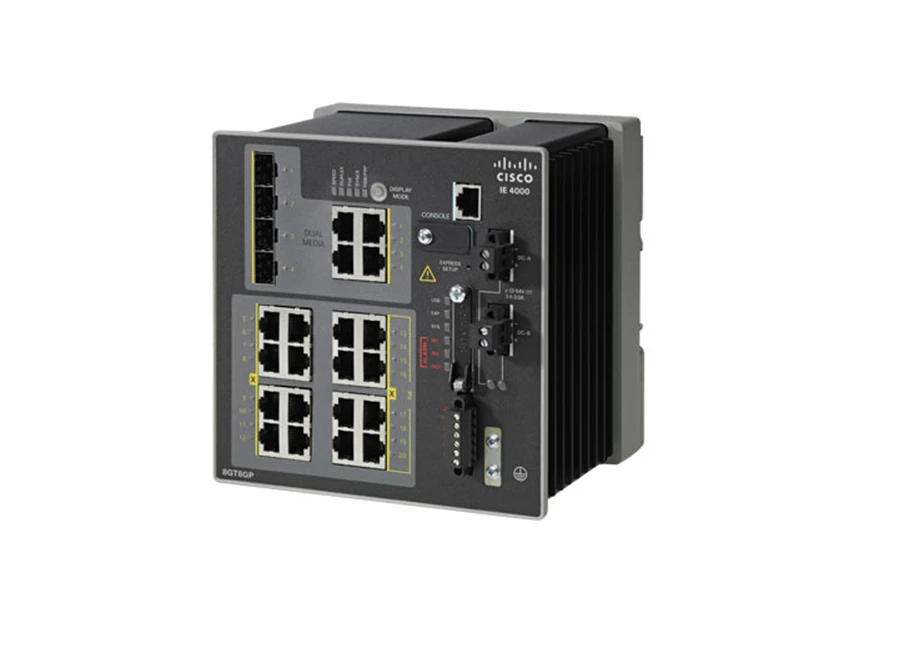

Cisco IE 4000 4GS8GP4G E Endüstriyel PoE Switch

Teknik Özellikler

General
Device Type	Switch - 16 ports - managed
Enclosure Type	DIN rail mountable
Subtype	Gigabit Ethernet
Ports	4 x Gigabit SFP + 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE+
Capacity	Virtual interfaces (VLANs): 1000
Capacity	IGMP groups: 1000
MAC Address Table Size	16K entries
Routing Protocol	OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Authentication Method	RADIUS, TACACS+
Features	DHCP support, NAT support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, ARP inspection, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613
RAM	512 MB
Flash Memory	128 MB
Expansion / Connectivity
Interfaces	8 x 1000Base-T RJ-45 PoE+
	4 x 1000Base-T RJ-45 uplink
	4 x SFP uplink
	1 x mini-USB Type B
	1 x console RJ-45
	4 x 1000Base-X SFP
Expansion Slots	1 (total) / 0 (free) x SD Memory Card
Power
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Voltage Required	DC 9.6 - 60 V
Electric Current Required	4.3 A
Power Consumption Operational	40 Watt
Miscellaneous
Included Accessories	1 GB SD card
MTBF	536,220 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-14, EN 50121-4, IP30, NOM-019-SCFI-1998, VCCI Class A, KN22, KN24, China RoHS, EN 50121-3-2, EN 60529, EN 61326, AS/NZS CISPR22:2004 Class A, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC 60068-2-3, EN 61373, ISO 9223, CNS13438:2006 Class B
TAA Compliant	Yes
Software / System Requirements
Software Included	Cisco IOS LAN Base
Dimensions & Weight
Width	6.1 in
Depth	5.1 in
Height	6.1 in
Weight	6.35 lbs
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - 5 years - response time: 10 days
Environmental Parameters
Min Operating Temperature	-40 °F
Max Operating Temperature	167 °F
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	185 °F
Country of Origin
Country of Origin	CN,US
