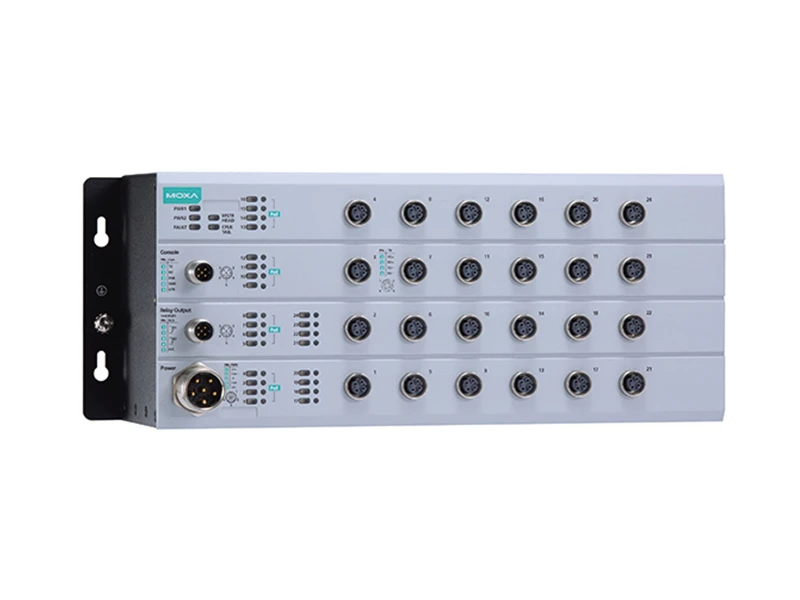

Moxa TN 4524A 16PoE WV CT T Endüstriyel PoE Switch

Özellikler

Up to 16 IEEE 802.3at/af compliant combo PoE and Ethernet ports
Isolated power with wide 24 to 110 VDC power supply range
Complies with all EN 50155 mandatory test items*
-40 to 75°C operating temperature range
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Provides up to 30 watts per PoE port

Teknik Özellikler

Technology
Standards	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X)
	IEEE 802.3ab for 1000BaseT(X)
	IEEE 802.3x for Flow Control
	IEEE 802.1D-2004 for Spanning Tree Protocol
	IEEE 802.1w for Rapid Spanning Tree Protocol
	IEEE 802.1s for Multiple Spanning Tree Protocol
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1p for Class of Service
	IEEE 802.1X for Authentication
	IEEE 802.3ad for Port Trunk with LACP
Software Features
Management	IPv4/IPv6, SNMP v1/v2c/v3, Telnet, LLDP, Port Mirror, Syslog, RMON, BootP, DHCP Server/Client, DHCP Option 66/67/82, TFTP, SMTP, RARP, HTTP, HTTPS, SNMP inform, Flow Control, Back pressure flow control
Filter	802.1Q VLAN, Port-Based VLAN, GVRP, IGMPv1/v2, GMRP, Static Multicast
Redundancy Protocols	STP/RSTP, MSTP, Turbo Ring v1/v2, Turbo Ring v2 with DRC, Turbo Chain, Link Aggregation
Security	RADIUS, TACACS+, SSL, SSH, Port Lock, Broadcast Storm Protection, Rate Limit
Time Management	SNTP, NTP Server/Client, IEEE 1588v2 PTP (SW-based)
MIB	MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties
Priority Queues	4
Max. Number of VLANs	64
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
Interface
Fast Ethernet	Front cabling, M12 D-coded 4-pin female connector, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Gigabit Ethernet	Front cabling, M12 X-coded 8-pin connector, 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, auto MDI/MDI-X connection
Console Port	M12 A-coding 5-pin male connector
Alarm Contact	2 relay outputs in one M12 A-coding 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Power Requirements
Input Voltage	24/36/48/72/96/110 VDC
Operating Voltage	16.8 to 137.5 VDC
Input Current	Max. 6.6 A @ 24 VDC
Overload Current Protection	Present
Connection	M23 connector
Reverse Polarity Protection	Present
Physical Characteristics
Housing	Metal
IP Rating	IP42 protection (optional protective caps available for unused ports)
Dimensions	347.8 x 132 x 122.3 mm (13.70 x 5.20 x 4.81 in)
Weight	3063 g (6.74 lb)
Installation	Panel mounting
Environmental Limits
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m
Please contact Moxa if you require products guaranteed to function at higher altitudes.
Standards and Certifications
Safety	UL 61010-2-201, EN 60950-1 (LVD)
EMC	EN 55032, EN 55024
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
	IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-6 CS: 10 V
	IEC 61000-4-8
Rail Traffic	(for panel mounting installations)
	N 50155*, EN 50121-4, EN 45545-2
	*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Shock	EN 50155, IEC 61373
Freefall	IEC 60068-2-31
Vibration	EN 50155, IEC 61373
Note	Please check Moxa’s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time	429,402 hrs
Standard	Telcordia SR332
