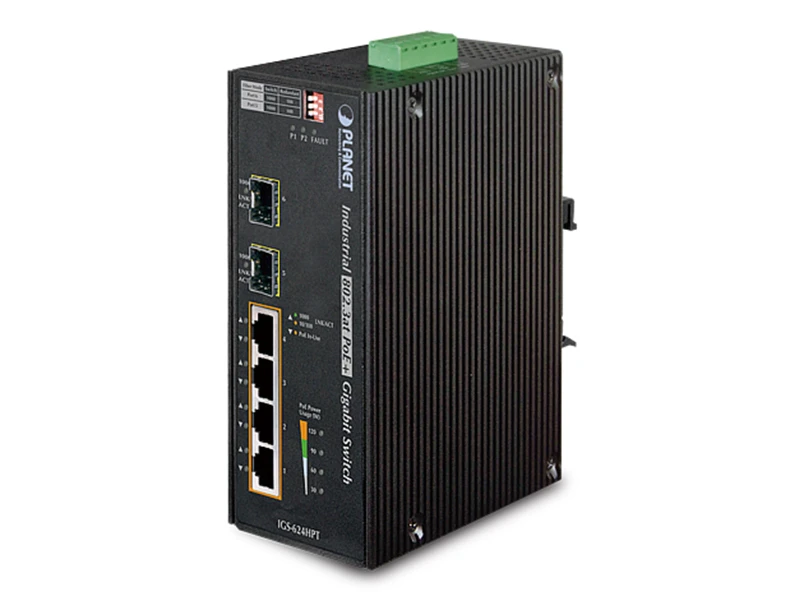

1000 PoE Switch

Özellikler

Physical Port

4-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured

Fiber Port Redundancy

Link status auto-detect and redundant on Dual ports with the same connector type
Only Primary-Port is active at a time, the Backup-Port is blocked
When Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically.
Once the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-Port.

Layer 2 Features

Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
9K Jumbo Frame Size support
Backplane (Switching Fabric): 12Gbps
Integrated address look-up engine, support 1K absolute MAC addresses
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case / Installation

Slim IP30 metal case protection
DIN Rail and Wall Mount Design
Redundant Power Design
- 12 to 48V DC, redundant power with polarity reverse protect function
- AC 24V power adapter acceptable
Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature

Teknik Özellikler

Hardware Specifications
Copper Ports	4 x 10/100/1000Base-T RJ-45 TP
	Auto-MDI/MDI-X, Auto-Negotiation
SFP / mini-GBIC Slots	2 1000Base-SX/LX/BX SFP interfaces (Port-5 and Port-6)
	Compatible with 100Base-FX SFP
DIP Switch	DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
	DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX
	DIP-3: Switch mode / Fiber Redundant mode
Connector	Removable 6-pin terminal block
	Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm	Provides one relay output for power failure
	Alarm Relay current carry ability: 1A @ DC 24V
LED	3 x LED for System and Power:
	Green: DC Power 1
	Green: DC Power 2
	Green: Power Fault
	2 x LED for Per Copper Port (Port-1~Port-4):
	Green: 1000 LNK/ACT
	Orange:100 LNK/ACT
	1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
	Green: LNK/ACT
ESD Protection	6KV DC
EFT Protection	6KV DC
Enclosure	IP30 type metal case
Installation	DIN rail kit and wall mount ear
Dimensions (W x D x H)	135 x 87 x 32mm
Weight	503g
Power Requirements	DC 12~48V or AC 24V
	Redundant power with polarity reverses protection function
Power Consumption / Dissipation	7.2watts / 24BTU
Cable	Twisted-Pair
	10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
	100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
	1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
	Fiber-Optic Cable
	1000Base-SX:
	50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
	1000Base-LX:
	9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
	kilometers (vary on SFP module)
	100Base-FX:
	50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2
	kilometers
	9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
	(vary on SFP module)
Switch Specification
Switch Processing Scheme	Store-and-Forward
Address Table	1K entries
Flow Control	Back pressure for half duplex
	IEEE 802.3x Pause Frame for full duplex
Switch fabric	12Gbps
Throughput (packet per second)	8.93Mpps@64bytes
Maximum Transmit Unit	9216 bytes
Speed	SX/LX: 2000Mbps (full-duplex)
	FX: 200Mbps (full-duplex)
	TP: 10/20Mbps, 100/200Mbps, 2000Mbps
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet / 10Base-T
	IEEE 802.3u Fast Ethernet / 100Base-TX
	IEEE 802.3ab Gigabit Ethernet / 1000Base-T
	IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
	IEEE 802.3x Full-Duplex Flow Control
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32(Free fall)
	IEC60068-2-27(Shock)
	IEC60068-2-6(Vibration)
Environment
Temperature	Operating:	-40~75 degree C
	Storage:	-40~75 degrees C
Humidity	Operating:	5~95% (Non-condensing)
	Storage:	5~95% (Non-condensing)
Ordering Information
IGS-620TF	Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
