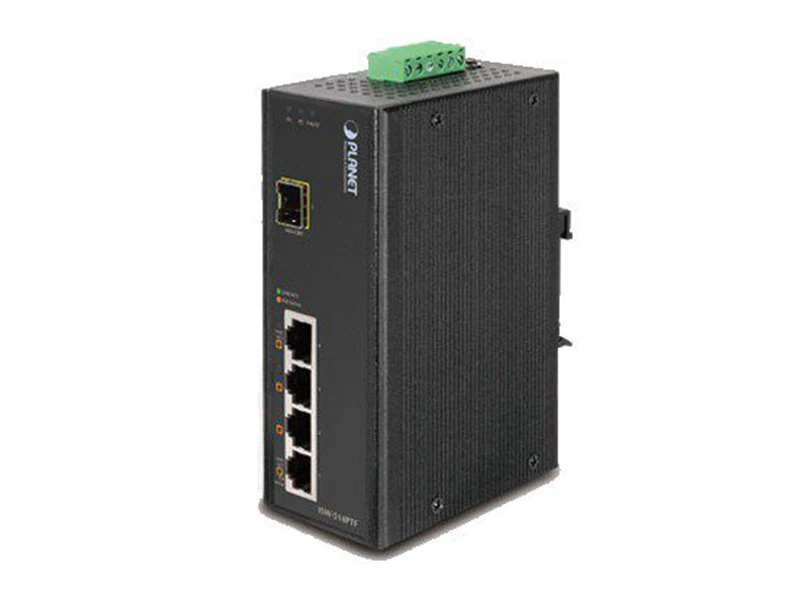

Planet ISW 514PTF 10/100 PoE Switch
Teknik Özellikler
| Physical Port |
| ISW-514PT: |
| 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector |
| 1-port 100Base-FX multi-mode SC interface - 2km ISW-514PT15: |
| 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector |
| 1-port 100Base-FX single mode SC interface - 15km ISW-514PTF: |
| 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector |
| 1-port 100Base-FX SFP interface |
| IEEE 802.3af PoE |
| Complies with IEEE 802.3af Power over Ethernet End-Span PSE |
| Up to 4 IEEE 802.3af devices powered |
| Supports PoE Power up to 15.4 watts for each PoE port |
| Auto detects powered device (PD) |
| Circuit protection prevents power interference between ports |
| Remote power feeding up to 100m |
| Layer 2 Features |
| Supports auto negotiation and 10/100Mbps half / full duplex and auto MDI/MDI-X |
| High performance Store and Forward architecture, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth |
| Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) |
| Automatic address learning and address aging |
| Industrial Case / Installation |
| IP-30 aluminum metal case protection |
| DIN rail and wall mount design |
| 24 or 48V DC, redundant power with polarity reverse protect function |
| Supports EFT 6000V DC protection for power line |
| Supports Ethernet ESD 6000V DC protection |
| -40 to 75 degrees C operating temperature |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 0-50 Watt
Montaj Tipi : Wall Mount
Çalışma Mesafesi : 100Mt.
