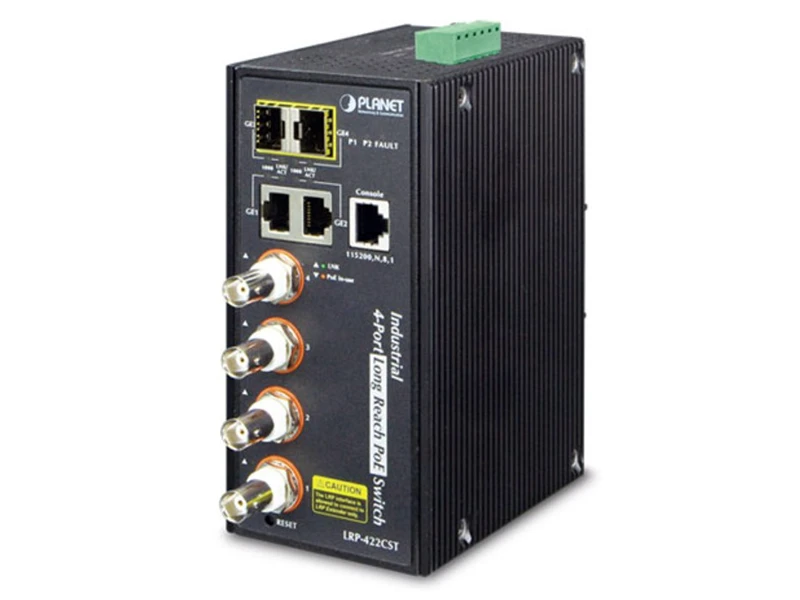

Planet LRP 422CST 10/100/1000 Endüstriyel PoE Switch
Teknik Özellikler
| Physical Port |
| 4 100Mbps BNC female ports with Long Reach PoE Injector function |
| 2 10/100/1000BASE-T Gigabit RJ45 copper ports |
| 2 100/1000BASE-X mini-GBIC/SFP slots |
| RJ45 console interface for switch basic management and setup |
| Long Reach Power over Ethernet |
| Supports PoE power up to 36 watts for each PoE port |
| Remote power feeding up to 1 kilometer with 5C2V/RG6 75Ω coaxial cable |
| Long Reach PoE Management |
| Total Long Reach PoE power budget control |
| Per port Long Reach PoE function enable/disable |
| Long Reach PoE port power feeding priority |
| Per Long Reach PoE port power limitation |
| Long Reach PD alive check |
| Long Reach PoE schedule |
| Industrial Case/Installation |
| IP30 aluminum case protection |
| DIN-rail and wall-mount design |
| Redundant Power Design |
| 48 to 56V DC, redundant power with polarity reverse protect function |
| Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection |
| 20 to 75 degrees C operating temperature |
| Layer 2 Features |
| Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) |
| High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth |
| Supports VLAN |
| IEEE 802.1Q tagged VLAN |
| Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) support |
| Protocol VLAN |
| Voice VLAN |
| Private VLAN |
| Management VLAN |
| GVRP |
| Supports Spanning Tree Protocol |
| STP (Spanning Tree Protocol) |
| RSTP (Rapid Spanning Tree Protocol) |
| MSTP (Multiple Spanning Tree Protocol) |
| STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| Supports Link Aggregation |
| IEEE 802.3ad Link Aggregation Control Protocol (LACP) |
| Cisco ether-channel (static trunk) |
| Maximum 4 trunk groups, up to 4 ports per trunk group |
| Provides port mirror (many-to-1) |
| Loop protection to avoid broadcast loops |
| Quality of Service |
| Ingress/egress rate limit per port bandwidth control |
| Storm control support |
| Broadcast/unknown unicast/unknown multicast |
| Traffic classification |
| IEEE 802.1p CoS |
| ToS/DSCP/IP Precedence of IPv4/IPv6 packets |
| Strict priority and Weighted Round Robin (WRR) CoS policies |
| Multicast |
| Supports IGMP snooping v2 and v3 |
| Supports MLD snooping v1, v2 |
| IGMP querier mode support |
| IGMP snooping port filtering |
| MLD snooping port filtering |
| Security |
| Authentication |
| IEEE 802.1X Port-based network access authentication |
| Built-in RADIUS client to co-operate with the RADIUS servers |
| RADIUS/TACACS+ login user access authentication |
| Access Control List |
| IPv4/IPv6 IP-based ACL |
| MAC-based ACL |
| MAC Security |
| Static MAC |
| MAC filtering |
| Port security for source MAC address entries filtering |
| DHCP snooping to filter untrusted DHCP messages |
| Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding |
| IP source guard prevents IP spoofing attacks |
| DoS attack prevention |
| SSH/SSL |
| Management |
| IPv4 and IPv6 dual stack management |
| Switch management interface |
| Web switch management |
| Telnet command line interface |
| SNMP v1, v2c and v3 |
| SSH/SSL secure access |
| User privilege levels control |
| Built-in Trivial File Transfer Protocol (TFTP) client |
| BOOTP and DHCP for IP address assignment |
| System maintenance |
| Firmware upload/download via HTTP/TFTP |
| Configuration upload/download through Web interface |
| Dual images |
| Hardware reset button for system reboot or reset to factory default |
| SNTP Network Time Protocol |
| Cable diagnostics |
| Link Layer Discovery Protocol (LLDP) and LLDP-MED |
| SNMP trap for interface linkup and linkdown notifications |
| Event message logging to remote Syslog server |
| Four RMON groups (history, statistics, alarms and events) |
| PLANET Smart Discovery utility |
Planet LRP 422CST 10/100/1000 Endüstriyel PoE Switch Pdf Dosyası3.77 MB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 4
Yönetilebilir Layer 2
PoE Güç Bütçesi : 130-200 Watt
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 130-200 Watt
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
