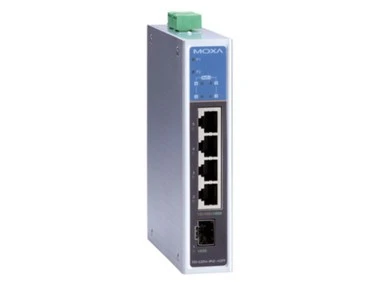

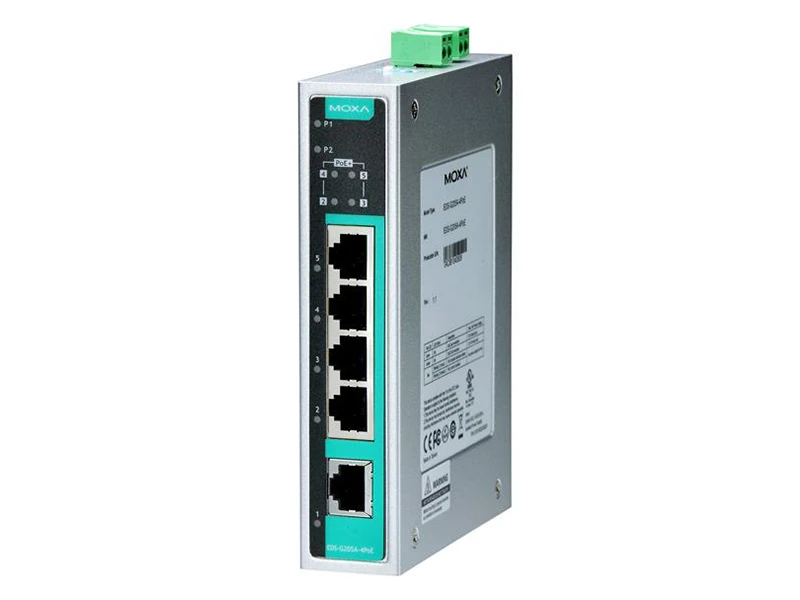

1000 Endüstriyel PoE Switch

Özellikler

Full Gigabit Ethernet ports
IEEE 802.3af/at, PoE+ standards
Up to 36 watts output per PoE port
12/24/48 VDC flexible redundant power inputs
Supports 9.6 KB jumbo frames
Intelligent power consumption detection and classification
Smart PoE over current and short circuit protection
-40 to 75°C operating temperature range (T models)

Teknik Özellikler

Technology
Standards	IEEE 802.3af/at for Power-over-Ethernet
	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X)
	IEEE 802.3ab for 1000BaseT
	IEEE 802.3z for 1000BaseX
	IEEE 802.3x for Flow Control
Processing Type	Store and Forward
Switch Properties
MAC Table Size	8 K
Packet Buffer Size	1 Mbit
Jumbo Frame Size	10 KB
Interface
RJ45 Ports	10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Ports	100/1000BaseSFP slot
PoE Pinout	V+, V+, V-, V- for pins 1,2,3,6 (Endspan, MDI Alternative A)
Power Requirements
Input Voltage	12/24/48 VDC, redundant dual inputs
Operating Voltage	12 to 57 VDC
Input Current	5.65 A @ 24 VDC
Overload Current Protection	Present
Connection	2 removable 2-contact terminal blocks
Reverse Polarity Protection	Present
Power Consumption	Max. 11.73 W full loading without PDs’ consumption
Power Budget	Max. 62 W at 12 VDC, 120 W at 24 VDC, and 144 W at 48 VDC for total PDs’ consumption,Max. 36 W for each PoE port
Physical Characteristics
Housing	Metal
IP Rating	IP30 protection
Dimensions	29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Weight	300 g (0.66 lb)
Installation	DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F)
Operating Temperature	Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Note	Please check Moxa’s website for the most up-to-date certification status.
Safety	UL 508
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
	IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
	IEC 61000-4-6 CS: 10 V
	IEC 61000-4-8
Rail Traffic	EN 50121-4
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF (mean time between failures)
Time	1,257,910 hrs
Standard	Telcordia (Bellcore), GB
