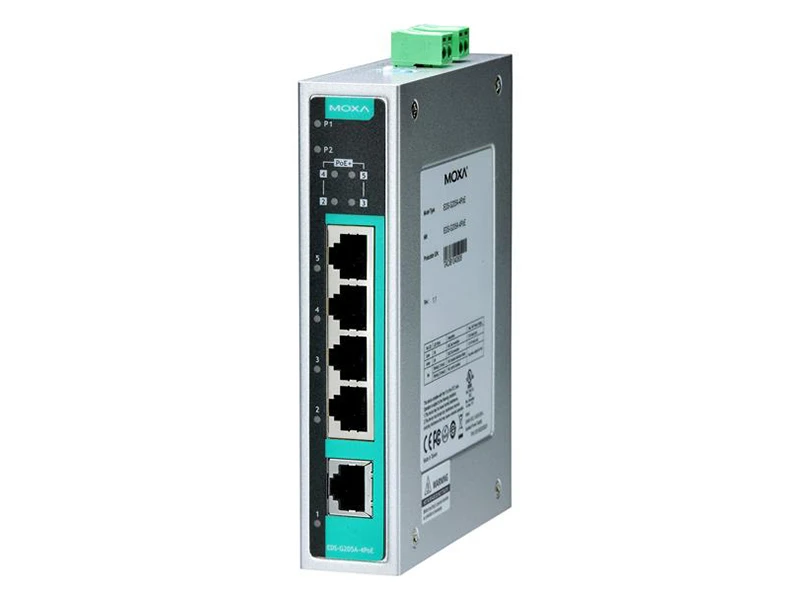

MOXA EDS G205A 4PoE 10/100/1000 Endüstriyel PoE Switch
Özellikler
- Full Gigabit Ethernet ports
- IEEE 802.3af/at, PoE+ standards
- Up to 36 watts output per PoE port
- 12/24/48 VDC flexible redundant power inputs
- Supports 9.6 KB jumbo frames
- Intelligent power consumption detection and classification
- Smart PoE over current and short circuit protection
- -40 to 75°C operating temperature range (T models)
Teknik Özellikler
Technology | |
Standards | IEEE 802.3af/at for Power-over-Ethernet |
IEEE 802.3 for 10BaseT | |
IEEE 802.3u for 100BaseT(X) | |
IEEE 802.3ab for 1000BaseT | |
IEEE 802.3z for 1000BaseX | |
IEEE 802.3x for Flow Control | |
Processing Type | Store and Forward |
Switch Properties | |
MAC Table Size | 8 K |
Packet Buffer Size | 1 Mbit |
Jumbo Frame Size | 10 KB |
Interface | |
RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
Fiber Ports | 100/1000BaseSFP slot |
PoE Pinout | V+, V+, V-, V- for pins 1,2,3,6 (Endspan, MDI Alternative A) |
Power Requirements | |
Input Voltage | 12/24/48 VDC, redundant dual inputs |
Operating Voltage | 12 to 57 VDC |
Input Current | 5.65 A @ 24 VDC |
Overload Current Protection | Present |
Connection | 2 removable 2-contact terminal blocks |
Reverse Polarity Protection | Present |
Power Consumption | Max. 11.73 W full loading without PDs’ consumption |
Power Budget | Max. 62 W at 12 VDC, 120 W at 24 VDC, and 144 W at 48 VDC for total PDs’ consumption,Max. 36 W for each PoE port |
Physical Characteristics | |
Housing | Metal |
IP Rating | IP30 protection |
Dimensions | 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in) |
Weight | 300 g (0.66 lb) |
Installation | DIN-rail mounting, wall mounting (with optional kit) |
Environmental Limits | |
Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) |
Wide Temp. Models: -40 to 75°C (-40 to 167°F) | |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
Note | Please check Moxa’s website for the most up-to-date certification status. |
Safety | UL 508 |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV |
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m | |
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV | |
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV | |
IEC 61000-4-6 CS: 10 V | |
IEC 61000-4-8 | |
Rail Traffic | EN 50121-4 |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
MTBF (mean time between failures) | |
Time | 1,257,910 hrs |
Standard | Telcordia (Bellcore), GB |
MOXA EDS G205A 4PoE 10/100/1000 Endüstriyel PoE Switch Pdf Dosyası1.32 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
Wall Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
