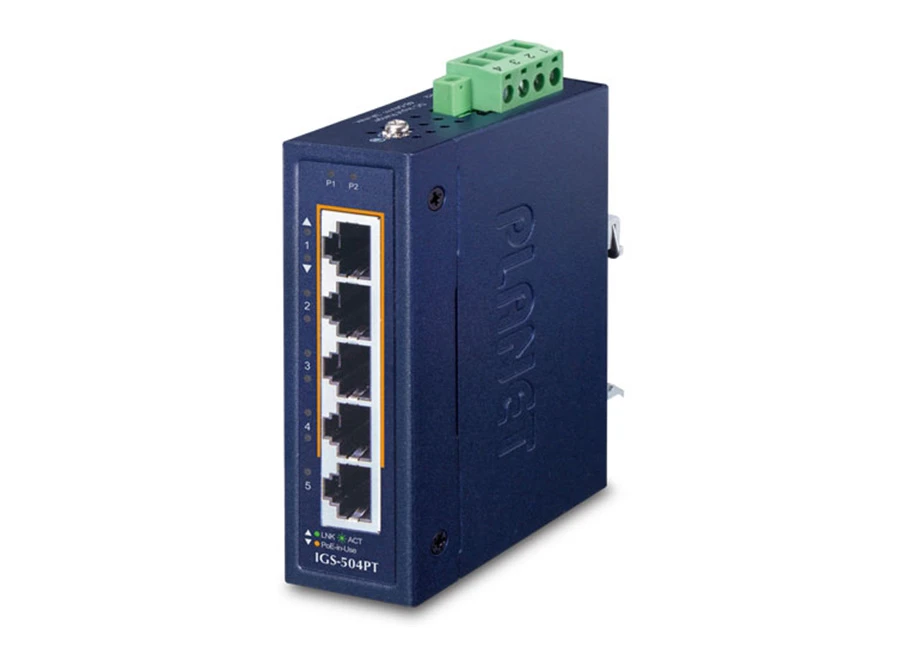

Planet IGS-504PT Endüstriyel PoE Switch
Özellikler
Interface
- 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af/at devices powered
- Up to 120-watt PoE budget
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Layer 2 Switching
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 2K MAC address table size
- 9K jumbo frame
- IEEE 802.1Q VLAN transparency
- Automatic address learning and address aging
Industrial Case and Installation
Teknik Özellikler
Hardware Specifications | |
Copper Ports | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
PoE Injector Ports | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
PoE Budget | 120W maximum@75 degrees C |
Connector | Removable 4-pin terminal block |
Pin 1/2 for Power 1; Pin 3/4 for Power 2 | |
Power Requirements | 48~54V DC, 3A (max.) |
Redundant power with reverse polarity protection | |
Power Consumption | DC 48V: |
Max. 0.48 watts/1.63BTU (System) | |
Max. 62.88 watts/214.5BTU ( Full Loading) | |
DC 54V: | |
Max. 0.54 watts/1.84BTU (System) | |
Max. 123.12 watts/420BTU ( Full Loading) | |
Dimensions (W x D x H) | 30 x 70 x 104 mm |
Weight | 260g |
Enclosure | IP30 metal case |
Installation | DIN-rail kit and wall-mount kit |
ESD Protection | 6KV |
Switch Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 10Gbps |
Throughput (packet per second) | 7.4Mpps@64bytes |
Address Table | 2K entries |
Jumbo Frame | 9Kbytes |
Flow Control | Back pressure for half duplex |
IEEE 802.3x pause frame for full duplex | |
Power over Ethernet | |
PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
Backward compatible with IEEE 802.3af Power over Ethernet/PSE | |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Output | Per port 48-54V DC |
Max. 30 watts@54V DC | |
Max. 15 watts@48V DC | |
PoE Power Budget | 120 watts |
Max. Number of Class 4 PDs | 4 |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC 60068-2-32 (free fall) |
IEC 60068-2-27 (shock) | |
IEC 60068-2-6 (vibration) | |
Standards Compliance | IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet | |
IEEE 802.3ab Gigabit Ethernet | |
IEEE 802.3x Full-Duplex Flow Control | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
IEEE 802.3at Power over Ethernet Plus PSE | |
IEEE 802.3af Power over Ethernet Plus | |
IEEE 802.1p Class of Service | |
Environment | |
Temperature | Operating: -40~75 degrees C |
Storage: -40~75 degrees C | |
Humidity | Operating: 5~90% (non-condensing) |
Storage: 5~90% (non-condensing) | |
Ordering Information | |
IGS-504PT | Compact Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
Planet IGS-504PT Endüstriyel PoE Switch Pdf Dosyası3.15 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
Çalışma Mesafesi : 100Mt.
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
