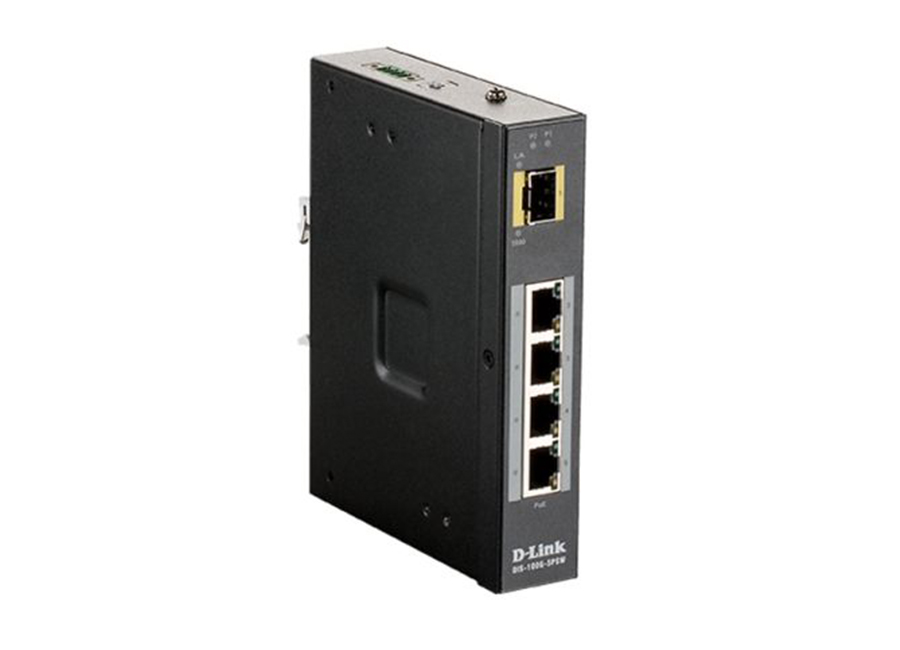

D-Link DIS 100G 5PSW Endüstriyel PoE Switch
Teknik Özellikler
Hardware Version |
• A1 |
Number of Ports |
• 4 10/100/1000Base-T PoE ports |
• 1 SFP port |
Diagnostic LEDs |
• P1/P2 |
• Link/Activity/Speed |
• PoE status |
Port Functions |
• IEEE 802.3 for Ethernet |
• IEEE 802.3u for Fast Ethernet |
• IEEE 802.3ab for Gigabit Ethernet |
• IEEE 802.3z for Gigabit fiber |
• IEEE 802.3x Flow Control |
• IEEE 802.3az Energy-Efficient Ethernet (EEE) |
Media Interface Exchange |
• Auto-MDI/MDIX adjustment for all twisted pair ports |
Switching Capacity |
• 10 Gbps |
Transmission Method |
• Store-and-forward |
Maximum Forwarding Rate |
• 7.44 Mpps |
MAC Address Table Size |
• Up to 2K entries |
Jumbo Frame |
• 9 KB |
Advanced Features |
• Broadcast/Multicast/Unicast Storm Control |
• IEEE 802.1p Quality of Service (QoS) - 4 hardware queues per port |
PoE Standard |
• IEEE 802.3af/at |
PoE Capable Ports |
• Ports 2 to 5 |
PoE Power Budget |
• Max. 120 W* |
Physical Parameters |
Power Input |
• 48 to 58 V DC terminal block dual input |
Power Consumption |
• Maximum: 4.46 W (PoE off) |
• Maximum: 131.57 W (PoE on) |
Heat Dissipation |
• 15.22 BTU/hr (PoE off) |
• 448.94 BTU/hr (PoE on) |
MTBF |
• > 25 years |
Weight |
• 0.5 kg |
Dimensions |
• 107 x 29 x 139 mm |
Ventilation |
• Fanless |
Temperature |
• Operating: -40В° to 75В°C |
• Storage: -40В° to 85В°C |
Humidity |
• Operating: 5% to 95% non-condensing |
• Storage: 5% to 95% non-condensing |
Material |
• IP30-rated metal casing |
Installation |
• DIN rail/wall mountable |
Certifications |
• UL/CE/FCC |
• NEMA-TS2 |
• EN50121-4 compliant |
• UL C1D2 compliant |
Safety |
• UL61010-1, UL61010-2-201, UL C1D2 |
EMI |
• 47 CFR FCC Part 15 Subpart B (Class A) |
• ICES-003 Issue 6 (Class A) |
EMC |
• EN61000-6-2 |
• EN61000-6-4 |
EMS |
• EN 61000-4-2 ESD Level 3 |
• EN 61000-4-3 RS Level 3 |
• EN 61000-4-4 EFT Level 3 |
• EN 61000-4-5 Surge Level 3 |
• EN 61000-4-6 CS Level 3 |
• EN 61000-4-8 |
Environmental Tests |
• IEC 60068-2-27 Shock |
• IEC 60068-2-32 Freefall |
• IEC 60068-2-6 Vibration |
* The actual available PoE budget depends on the power supply connected to the switch. |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
