Açıklama

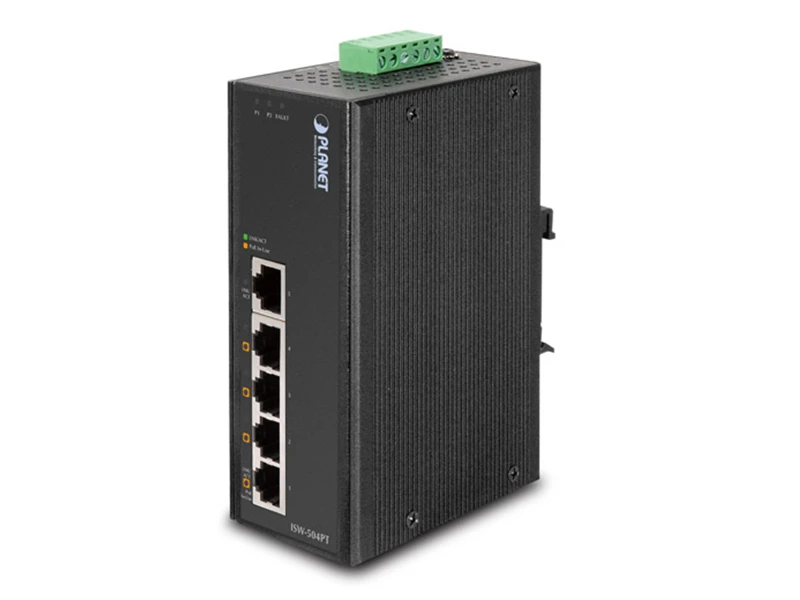

Planet ISW 504PT 10/100 PoE Switch

Teknik Özellikler

Physical Port
5-Port 10/100Mbps RJ-45 with auto MDI/MDI-X function
4-Port support 48V DC power to PoE Powered Device (Port-1 to Port-4)
IEEE 802.3af PoE
Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 4 IEEE 802.3af devices powered
Supports PoE Power up to 15.4 Watts for each PoE port
Auto detect powered device (PD)
Circuit protection prevent power interference between ports
Remote power feeding up to 100m
Layer 2 Features
Supports Auto-Negotiation and 10/100Mbps Half / Full Duplex and Auto MDI/MDI-X
High performance Store and Forward architecture, runt / CRC filtering eliminates
erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame
flow control (Full-Duplex)
Automatic address learning and address aging
Integrated address look-up engine, support 2K absolute MAC addresses
CSMA / CD Protocol
Industrial Case / Installation
IP-30 Aluminum metal case protection
DIN Rail and Wall Mount Design
Redundant Power Design
24V or 48V DC, redundant power with polarity reverse protect function
Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 Degree C operation temperature

pdfPlanet ISW 504PT 10/100 PoE Switch Pdf Dosyası493.34 KB

Teknik Kısa

PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
PoE Port Sayısı : Tooltip 4 Port
PoE Güç Bütçesi : 0-50 Watt
Yönetilebilirlik : Yönetilebilir Layer 2
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Wall Mount
