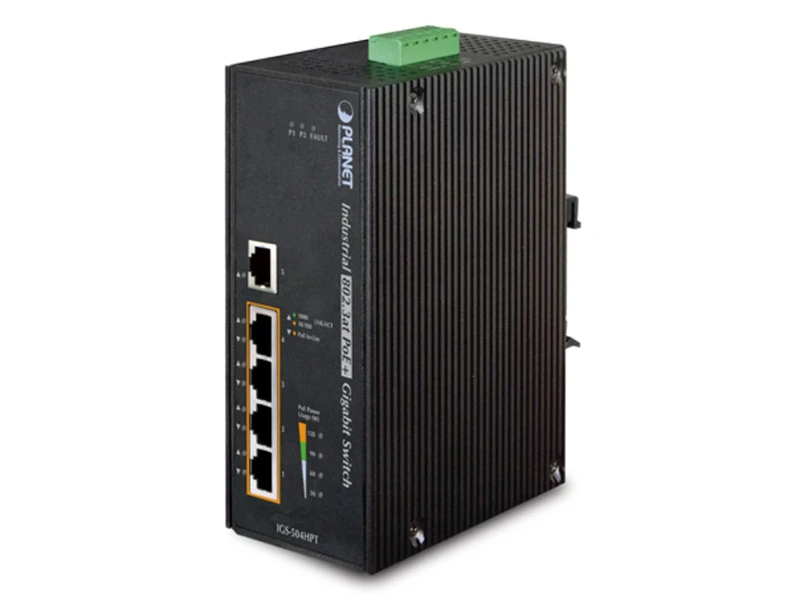

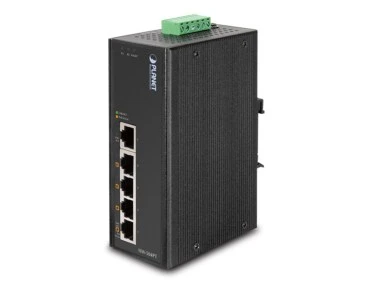

Planet IGS 504HP4 10/100/1000 Endüstriyel PoE Switch Teknik Özellikler
Hardware Specifications Copper Ports 5 x 10/100/1000Base-T RJ-45 TP Auto-MDI/MDI-X, Auto-Negotiation Connector Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Alarm Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V LED 3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Green: Power Fault 2 x LED for Per Copper Port (Port-1~Port-4): Green: 1000 LNK/ACT, Orange:100 LNK/ACT Orange: PoE In-use 1 x LED for Port-5: Green: 1000 LNK/ACT, Orange:100 LNK/ACT 4 x LED for PoE Power Usage (W): Orange: 30, 60, 90 and 120W ESD Protection 6KV DC EFT Protection 6KV DC Enclosure IP30 aluminum metal case Installation Type DIN rail kit or wall mount Dimensions (W x D x H) 152 x 107x 72 mm Weight 1478g Power Requirements 48V DC, 5A max. Redundant power with polarity reverse protection function Power Consumption / Dissipation 14.1 watts / 48 BUT (System loading without PoE) 134.1 watts / 457 BTU (Full loading with PoE function) Power over Ethernet PoE Standard IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE PoE Power Supply Type End-Span Power Pin Assignment 1/2(+), 3/6(-) PoE Power Output Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at) Max. number of Class 4 PD 4 Switch Specification Switch Processing Scheme Store-and-Forward Address Table 1K entries Flow Control Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex Switch fabric 10Gbps Throughput (packet per second) 7.44Mpps @ 64bytes Maximum Transmit Unit 9216 bytes Speed TP: 10/20Mbps, 100/200Mbps, 2000Mbps Standards Conformance Standards Compliance IEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 100Base-TX IEEE 802.3ab Gigabit Ethernet / 1000Base-T IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet Regulation Compliance FCC Part 15 Class A, CE Stability Testing IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) Environment Temperature Operating: -40~75 degree C Storage: -40~75 degrees C Humidity Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing)
Planet IGS 504HP4 10/100/1000 Endüstriyel PoE Switch Pdf Dosyası1.13 MB
Teknik Özellikler
Hardware Specifications |
Copper Ports |
5 x 10/100/1000Base-T RJ-45 TP |
Auto-MDI/MDI-X, Auto-Negotiation |
Connector |
Removable 6-pin terminal block |
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
Alarm |
Provides one relay output for power failure |
Alarm Relay current carry ability: 1A @ DC 24V |
LED |
3 x LED for System and Power: |
Green: DC Power 1 |
Green: DC Power 2 |
Green: Power Fault |
2 x LED for Per Copper Port (Port-1~Port-4): |
Green: 1000 LNK/ACT, Orange:100 LNK/ACT |
Orange: PoE In-use |
1 x LED for Port-5: |
Green: 1000 LNK/ACT, Orange:100 LNK/ACT |
4 x LED for PoE Power Usage (W): |
Orange: 30, 60, 90 and 120W |
ESD Protection |
6KV DC |
EFT Protection |
6KV DC |
Enclosure |
IP30 aluminum metal case |
Installation Type |
DIN rail kit or wall mount |
Dimensions (W x D x H) |
152 x 107x 72 mm |
Weight |
1478g |
Power Requirements |
48V DC, 5A max. |
Redundant power with polarity reverse protection function |
Power Consumption / Dissipation |
14.1 watts / 48 BUT (System loading without PoE) |
134.1 watts / 457 BTU (Full loading with PoE function) |
Power over Ethernet |
PoE Standard |
IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE |
PoE Power Supply Type |
End-Span |
Power Pin Assignment |
1/2(+), 3/6(-) |
PoE Power Output |
Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) |
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at) |
Max. number of Class 4 PD |
4 |
Switch Specification |
Switch Processing Scheme |
Store-and-Forward |
Address Table |
1K entries |
Flow Control |
Back pressure for half duplex |
IEEE 802.3x Pause Frame for full duplex |
Switch fabric |
10Gbps |
Throughput (packet per second) |
7.44Mpps @ 64bytes |
Maximum Transmit Unit |
9216 bytes |
Speed |
TP: 10/20Mbps, 100/200Mbps, 2000Mbps |
Standards Conformance |
Standards Compliance |
IEEE 802.3 Ethernet / 10Base-T |
IEEE 802.3u Fast Ethernet / 100Base-TX |
IEEE 802.3ab Gigabit Ethernet / 1000Base-T |
IEEE 802.3x Full-Duplex Flow Control |
IEEE 802.3at High Power over Ethernet |
IEEE 802.3af Power over Ethernet |
Regulation Compliance |
FCC Part 15 Class A, CE |
Stability Testing |
IEC60068-2-32(Free fall) |
IEC60068-2-27(Shock) |
IEC60068-2-6(Vibration) |
Environment |
Temperature |
Operating: -40~75 degree C |
Storage: -40~75 degrees C |
Humidity |
Operating: 5~95% (Non-condensing) |
Storage: 5~95% (Non-condensing) |
Planet IGS 504HP4 10/100/1000 Endüstriyel PoE Switch Pdf Dosyası1.13 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
Montaj Tipi : Wall Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 130-200 Watt
Çalışma Mesafesi : 100Mt.
