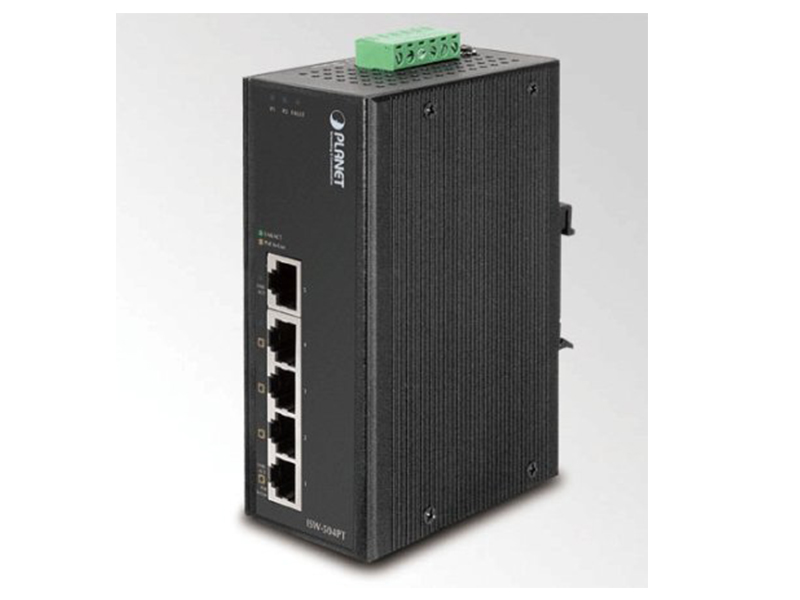

Planet PL ISW 504PT Endüstriyel PoE Switch
Özellikler
- 5-Port 10/100Base-TX RJ-45 port
- 4-Port IEEE 802.3af PoE injector
- Per port 15.4 watt
- IP30
- -40~75 Derece
Teknik Özellikler
Hardware Specification | |
10/100Base-TX Ports | 5 |
IEEE 802.3af PoE ports | 4 |
Dimension (D x W x H) | 135 x 87.8 x 56 mm |
Weight | 842g |
Power LED | Power1, Power2 and Fault |
Port 1~4: PoE in-use, LNK / ACT | |
Port 5: LNK / ACT | |
Power Requirement | 24 or 48 VDC input |
Redundant power with polarity reverse protection function | |
Installation | DIN Rail kit and Wall Mount ear |
Alarm | Provides one relay output for power fail |
Alarm Relay current carry ability: 1A @ DC 24V | |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
PoE Power Supply Type | End-Span |
PoE Power Output | Per Port 48V DC, 350mA . Max. 15.4 Watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
Switch Specification | |
Switch Processing Scheme | Store-and-Forward |
Address Table | 2K entries |
Flow Control | Back Pressure for Half Duplex |
IEEE 802.3x Pause Frame for Full Duplex | |
Switch fabric | 1Gbps |
Throughput (packet per second) | 0.74Mpps@64bytes |
Network cables | 10/100Base-TX: |
Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max.) | |
EIA/TIA-568 100-ohm STP (100meters, max.) | |
Regulation Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC60068-2-32 (Free Fall) |
IEC60068-2-27 (Shock) | |
IEC60068-2-6 (Vibration) | |
Standard Compliance | IEEE 802.3:Ethernet |
IEEE 802.3u:Fast Ethernet | |
IEEE 802.3x:Flow Control | |
IEEE 802.3af:Power over Ethernet | |
Environment | |
Temperature | Operating: -40~75 Degree C |
Storage: -40~85 Degree C | |
Humidity | Operating: 5~90%, Storage: 5~90% (Non-condensing) |
Planet PL ISW 504PT Endüstriyel PoE Switch PDF Dosyası493.34 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
PoE Güç Bütçesi : 50-130 Watt
PoE Port Sayısı : 4 Port
Montaj Tipi : Wall Mount
Çalışma Mesafesi : 100Mt.
