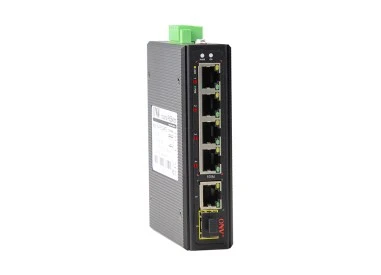

ONV ONV-IPS31064PF Endüstriyel PoE Switch

Özellikler

Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 2*155M SFP slot ports.
Port 1-4 support PoE IEEE802.3af/at.support DIN rail mounting

Teknik Özellikler

Model	ONV-IPS31064PF
Interface Characteristics
Fixed Port	4*10/100Base-TX PoE ports (Data /Power)
	2*155M uplink SFP fiber slot ports (Data)
	2 group of V+, V- redundant DC power interface (5P Phoenix terminal)
Ethernet Port	Port 1-6 can support 10/100Base-TX auto-sensing,full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
Twisted Pair Transmission	100BASE-TX: Cat5e or later UTP(≤100 meter)
Fiber Port Feature	155M SFP fiber interface, no include optical module by default, need to be purchased separately (optional single-mode /multi-mode, single fiber / dual fiber module, LC interface)
Optical Cable / Distance	Multi-mode: 850nm/ 0~500M, 1310nm/ 0~2KM,
	Single-mode: 1310nm / 0~40KM, 1550nm/ 0-120KM.
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
Network Protocol	IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX , IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.6Gbps (Non-blocking)
Forwarding	0.89Mpps
Rate@64byte
MAC	1K
Buffer Memory	768K
Jumbo Frame	1536bytes
LED Indicator	Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port : 5 /6 (Green)
PoE & Power Supply
PoE Port	Port 1 to 4
Power Supply Pin	Default 1/2 (+), 3/6 (-)
Max Power Per Port	30W, IEEE802.3af/at
Power Consumption	Standby<3W, Full Load af<60W, at<120W
Input Voltage / Interface	48-57VDC, 5P industrial phoenix terminal, anti-reverse protection
Power Supply	No, optional 48V/60W or 48V/120W industrial power supply
Physical Parameter
Operation TEMP / Humidity	-40~+75°C, 5%~90% RH Non-condensing
Storage TEMP / Humidity	-40~+85°C, 5%~95% RH Non-condensing
Dimension (LWH)	11910030mm
Net /Gross Weight	<0.5kg /<0.7kg
Installation	Desktop, 35mm DIN rail mounting
Certification & Warranty
Lightning Protection	Lightning protection: 6KV 8/20us, Protection level: IP40
	IEC61000-4-2(ESD)±8kV Contact Discharge,±15kV Air Discharge
	IEC61000-4-3(RS)10V/m (80~1000MHz)
	IEC61000-4-4(EFT)Power Line: ±6kV; Data Line: ±2kV
	IEC61000-4-5(Surge)Power Line,CM±4kV/DM±2kV;Data Line,±4kV
	IEC61000-4-6 (Radio Frequency Conduction) 10V(150kHz~80MHz)
	IEC61000-4-8 (Power Frequency Magnetic Field)
	100A/m Continued; 1000A/m,1s to 3s
	IEC61000-4-9 (Pulsed Magnetic Field) 1000A/m
	IEC61000-4-10 (Damping Oscillation) 30A/m ,1MHz
	IEC61000-4-12/18 (SHOCKWAVE) CM 2.5kV, DM 1kV
	IEC61000-4-16 (Common Mode Conduction) 30V Continued; 300V,1s
	FCC Part 15/CISPR22(EN55022)Class B
	IEC61000-6-2(General Industry standard)
Mechanical Properties	IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall)
Certification	CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS
Warranty	5 years, lifelong maintenance.
