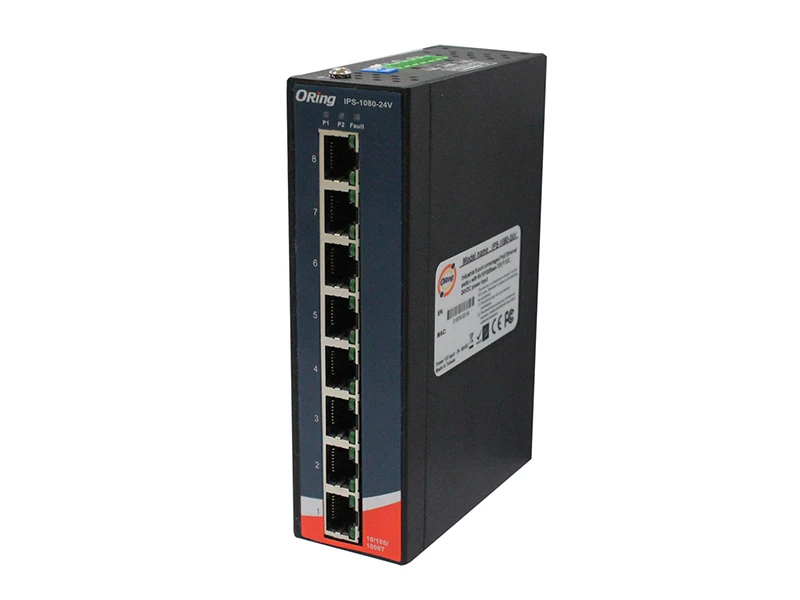

ORing IPS 1080 24V Endüstriyel PoE Switch

Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
Advanced PoE power boost technology to support dual 24VDC power inputs
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

PoE : PoE

Port Hızı : 100 Mbps

Yönetilebilirlik : Yönetilemez

Montaj Tipi : Wall Mount

PoE Güç Bütçesi : 50-130 Watt

PoE Port Sayısı : Tooltip

8 Port

ORing Switch Model	IPS-1080-24V
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E.	8
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T
	IEEE 802.3u for 100Base-TX
	IEEE 802.3x for Flow control
	IEEE 802.3at PoE specification (total power budget is 120Watts with maximum 30Watts per port)
MAC Table	2048 MAC addresses
Processing	Store-and-Forward
LED Indicators
Power Indicator	Green : Power LED x 2
Fault Indicator	Amber : Indicate PWR1 or PWR2 failure
10/100Base-T(X) RJ45 Port Indicator and PoE indicator	Green for port Link/Act.
10/100Base-T(X) RJ45 Port Indicator and PoE indicator	Green for PoE power injected.
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 24~36VDC on 6-pin terminal block.
Power Consumption (Typ.)	4.32 Watts (PoE output not included)
Overload Current Protection	Present
Reverse Polarity Protection	NOT Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	41 (W) x 94.9 (D) x 144.3(H) mm (1.61 x 3.74 x 5.68inch)
Weight (g)	555 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
