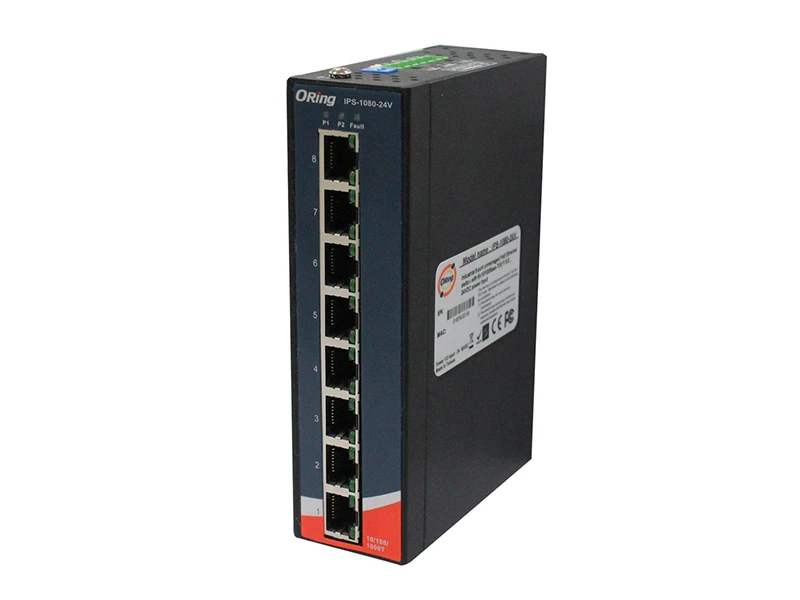

ORing IPS 1080A Endüstriyel Ethernet Switch
Özellikler
- Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
- Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
- Advanced PoE power boost technology to support dual 24VDC power inputs
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Warning system by relay output
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Teknik Özellikler
| ORing Gigabit Switch Model | IPS-1080A |
| Physical Ports | |
| 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E. | 8 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T |
| IEEE 802.3u for 100Base-TX | |
| IEEE 802.3x for Flow control | |
| IEEE 802.3at PoE specification (total power budget is 180Watts with maximum 30Watts per port) | |
| MAC Table | 2048 MAC addresses |
| Processing | Store-and-Forward |
| LED Indicators | |
| Power Indicator | Green : Power LED x 2 |
| Fault Indicator | Amber : Indicates PWR1 or PWR2 failure occurred |
| 10/100/1000Base-T(X) RJ45 Port Indicator | Green for port Link / Act |
| Amber for 100Mbps indicator | |
| DIP Switch | |
| DIP-Switch 1 | Power-1 failed warning : (ON) enable, (OFF) disable |
| DIP-Switch 2 | Power-2 failed warning : (ON) enable, (OFF) disable |
| Fault Contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Redundant Input Power | Dual DC inputs. 50~57VDC on 6-pin terminal block. |
| Power Consumption (Typ.) | 4.5 Watts (power consumption of P.S.E. is not included) |
| Overload Current Protection | Present |
| Reverse Polarity Protection | NOT Present |
| Physical Characteristics | |
| Enclosure | IP-30 |
| Dimensions (W x D x H) | 26.1(W) x 94.9(D) x 144.3(H) mm ( 1.03x3.74x5.68 inch.) |
| Weight (g) | 412 g |
| Environmental | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| Regulatory Approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
ORing IPS 1080A Endüstriyel Ethernet Switch Pdf Dosyası961.26 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Montaj Tipi : Wall Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
