Açıklama

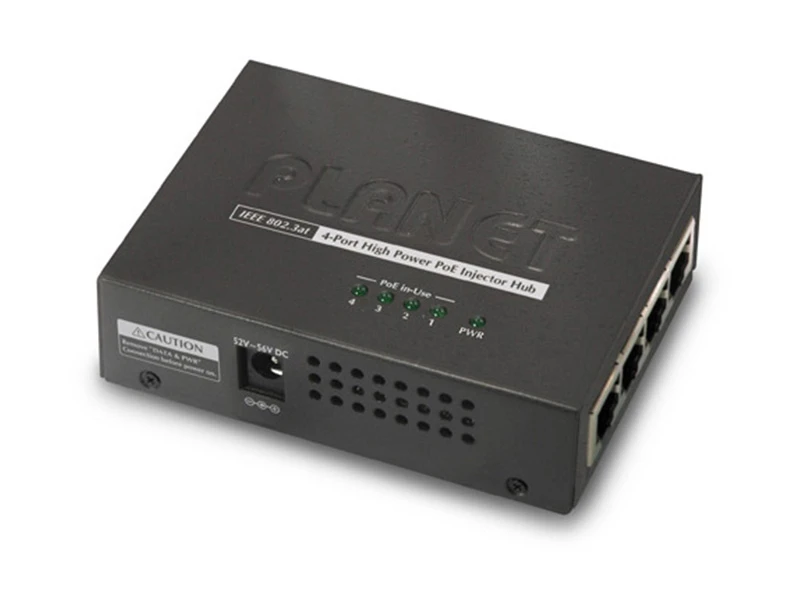

Planet HPOE 460 PoE Injector Hub
Özellikler
Interface
- 8-Port RJ-45
- - 4 -Port 10/100/1000Mbps “Data input”
- - 4 -Port 10/100/1000Mbps “Data + Power output”
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab 10/100/1000Base-T Ethernet standard
- IEEE 802.3at and IEEE 802.3af Power over Ethernet Mid-Span PSE
- Provides DC 52V power over RJ-45 Ethernet cable to IEEE 802.3at / 802.3af compliant devices ( up to 4 PD devices)
- PoE power up to 30.8 watts (802.3at PoE) / 15.4 watts (802.3af PoE) for each PoE port
- Remote power feeding up to 100m
- Full power support for each PoE port
- Automatically detects the powered device (PD)
- Circuit protection prevents power interference between ports
- 100~240V AC, 50/60Hz, 2A universal power supply adapter with DC 52V / 2.31A power output
Hardware
- Desktop palm size, wall mountable
- LED indicator power input indication
- FCC Part 15 Class B, CE
- Plug & play
- Standard Compliance
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at Enhancement Power over Ethernet
- IEEE 802.3af Power over Ethernet
Teknik Özellikler
| Hardware Specifications | |
| Hardware Version | 2 |
| Interface | “Data” Input Ports: 4 x RJ-45 |
| “Data+Power” Output Ports: 4 x RJ-45 | |
| Data Rate | 10/100/1000Mbps |
| LED | System: Power x 1 (Green) |
| Per PoE Port: PoE ready / in-use x 4 (Green) | |
| Network Cable | 10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft) |
| 100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) | |
| 1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft) | |
| EIA/TIA- 568 100-ohm STP (100m, 328ft) | |
| Dimensions (W x D x H) | 26 x 70 x 97 mm |
| Weight | 220g |
| Power Requirements | DC 52V~56V |
| Power over Ethernet | |
| PoE Power Supply Type | Mid-Span |
| PoE Power Output | Per Port DC 52V 30.8 watts / 15.4 watts |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Power Budget | 120 watts |
| Number of 802.3af PD Class 0, 1, 2, 3 can be powered | 4 |
| Number of 802.3at PD Class 1, 2, 3 can be powered | 4 |
| Number of 802.3at PD Class 0, 4 can be powered | 4 |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3at Enhancement Power over Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Ordering Information | |
| HPOE-460 | 4-Port IEEE 802.3at High Power over Ethernet Injector Hub |
