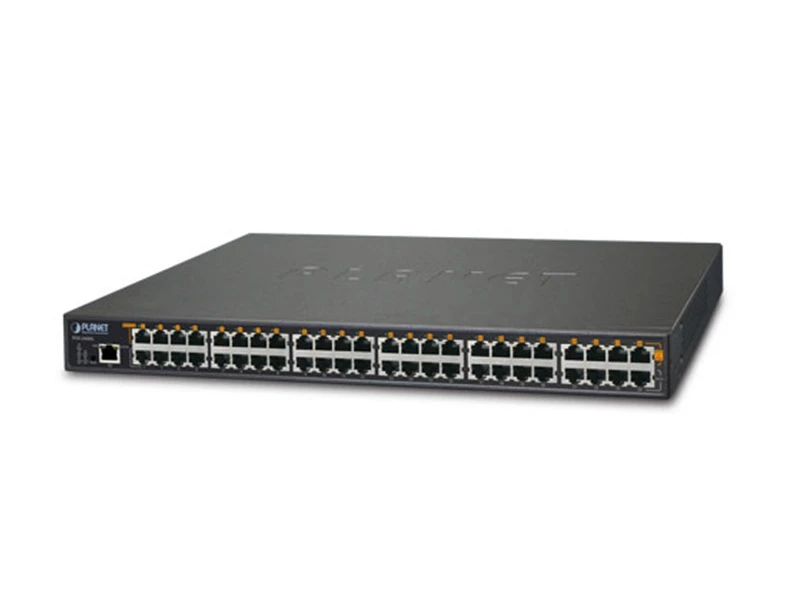

Planet POE 2400G PoE Managed Injector Hub

Özellikler

Interface

Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standard
48-port RJ45
- 24-port 10/100/1000Mbps “Data input”
- 24-port 10/100/1000Mbps “Data + Power output”
One 10/100/1000BASE-T management port

Power over Ethernet

Complies with IEEE 802.3at and IEEE 802.3af Power over Ethernet mid-span PSE
Up to 24 IEEE 802.3at/802.3af devices powered
440-watt PoE budget
Supports PoE power up to 30.8 watts (802.3at PoE)/15.4 watts (802.3af PoE) for each PoE port
Automatically detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m

PoE Management

Total PoE power budget control
Per port PoE power schedule
PoE function enable/disable
Per port PoE function enable/disable
PoE port power feeding priority
PD classification detection
Over temperature protection
PD alive-check

Management

Web interface for remote management
Supports Network Time Protocol (NTP)
Firmware upgrade through Web interface
PLANET Smart Discovery utility automatically finds PLANET devices on the network
SNMP trap for alarm notification of events
System log/remote syslog

Hardware

19-inch rack mountable; 1U height
Reset button for resetting to default setting and system reboot
LED indicators for PoE ready and PoE activity
LED indicators for power alert and fan alert
FCC Part 15 Class A, CE

Teknik Özellikler

Hardware
Hardware Version	4
Interface	Data Input Ports: 24 x RJ45
	Data+Power Output Ports: 24 x RJ45
	Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
Data Rate	10/100/1000Mbps
LED	System:
	SYS PWR x 1 (Green)
	PoE1 Failure x 1 ( Red )
	PoE2 Failure x 1 ( Red )
	Fan1 Failure x 1 ( Red )
	Fan2 Failure x 1 ( Red )
	Per PoE Port: PoE-in-use x 1 (Green)
	Management port x 2: 1000 (Green), 10/100(Orange)
Network Cable	10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
	100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
	1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
	EIA/TIA- 568 100-ohm STP (100m)
Power Requirements	100-240V AC, 50/60 Hz, 8A
Power Consumption	500 watts (max.)
Ventilation	Fan x 3
Dimensions (W x D x H)	440 x 300 x 44mm
Power over Ethernet
PoE Power Supply Type	Mid-span
PoE Power Output	Per port DC 52V 30.8/15.4 watts
Power Pin Assignment	4/5(-), 7/8(+)
PoE Power Budget	440 watts
Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered	24
Number of 802.3at PDs (Class 1, 2, 3) can be powered	14
Number of 802.3at PDs (Class 0, 4) can be powered	14
Management
Management Interface	Web, PLANET Smart Discovery Lite
PoE Management	Power limit by consumption and classification mode
	PoE admin mode
	Per port power schedule
	Per port power enable/disable
	Power feeding priority
	Over temperature protection
	Current per port usage and status
	Total power consumption
Management Feature	Setup of system/management functions
	Web firmware upgrade
	SNMP trap for alarm notification of events
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T Ethernet
	IEEE 802.3u 100BASE-TX Fast Ethernet
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
	RFC 768: UDP
	RFC 791: IP
	RFC 2068 HTTP
	RFC 1157: SNMP v1
	RFC 1902: SNMP v2c
	RFC 5424: Syslog
Environments
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 90% (non-condensing)
