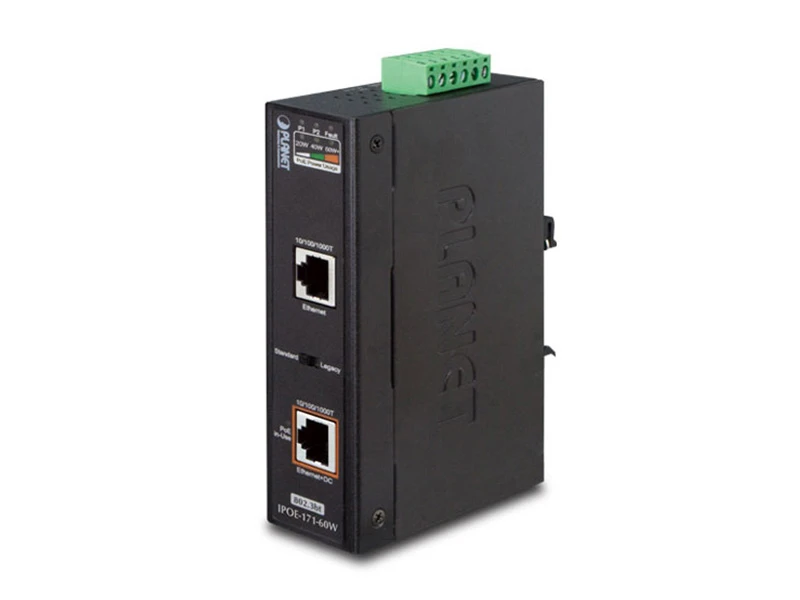

Planet IPOE 171 60W Endüstriyel PoE Injector
Özellikler
Interface
- 2 RJ45 interfaces
- 1-port Data + Power output
- 1-port Data input
- 1 terminal block for master and slave power input. (Power Range: 48 ~ 56V DC redundant power)
- 1 PoE mode (standard/legacy) DIP switch
- Complies with IEEE 802.3af/at/bt PoE end-span/mid-span PSE
- Supports PoE power up to 60 watts for PoE port
- Auto-detection of PoE IEEE 802.3af/at/bt equipment and devices from being damaged by incorrect installation
- Monitors the status of the total PoE usage in real time
- Remote power feeding up to 100m
- Auto-detection of DC input voltage
Hardware
- IP30 slim-type metal case
- LED indicators for Power LED , PoE-in-Use LED and PoE Usage LED
- Industrial Case and Installation
- Solid wall mount or DIN-rail mount installation
- Supports 6KV DC Ethernet ESD protection
- 40 to 75 degrees C operating temperature
Teknik Özellikler
| Hardware Specifications | |
| Interface | Input Port |
| 1 x RJ45 STP | |
| Data In | |
| Output Port | |
| 1 x RJ45 STP | |
| PoE (Data + Power) Out | |
| Input power terminal block | |
| 1 | |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) |
| 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 | |
| 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 | |
| 1000BASE-T: 4-pair UTP Cat. 5e, 6 | |
| LED Indicator | System: Power 1 (Green), Power 2 (Green), Fault (Red) |
| PoE Port: PoE-in-Use x 1 (Orange) | |
| PoE Usage: PoE Usage x 3 (Orange) | |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 135 x 87.8 x 32 mm |
| Weight | 430g |
| Power Requirements | DC 48~56V, 2A max. |
| Unit Output Voltage | DC 45~53V |
| Power Consumption | 75 watts max. |
| No. of devices that can be powered | 1 |
| Installation | DIN-rail kit or wall-mount ear |
| Alarm | Provides one relay output for power failure |
| Alarm Relay current carry ability: 1A @ DC 24V | |
| Enclosure | IP30 slim-type metal case |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at/bt Ultra PoE PSE |
| PoE Power Output Budget | DC 50~54V / 60-watt PoE via 4-pair |
| DC 48~49V / 30-watt PoE via 2-pair | |
| PoE Power Output | Max. 60W@1m cable |
| Max. 51W@100m cable | |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) |
| Pair 2 Mid-span: 4/5 (+), 7/8 (-) | |
| PoE mode | Standard: |
| To provide power to the PD device that follows the IEEE 802.3af/at/bt standard. | |
| Legacy: | |
| To provide power to the PD device that does not fully follow the IEEE 802.3af/at/bt standard. | |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3bt 4-pair Power over Ethernet Type 3 | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Standard Accessories | |
| Package Contents | IPOE-171-60W |
| User's manual | |
| Wall-mount kit | |
| Dust cap | |
Planet IPOE 171 60W Endüstriyel PoE Injector Pdf Dosyası1.28 MB
