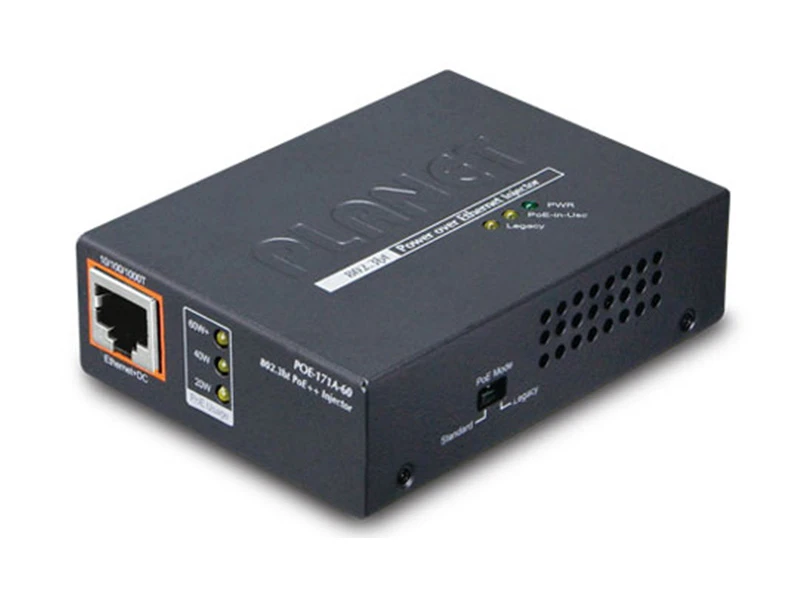

Planet POE 171A 60 PoE Injector
Özellikler
Interface
- 2 RJ45 interfaces
- 1-port Data + Power output
- 1-port Data input
- 1 DC 52~56V input power socket
- 1 PoE mode (standard/legacy) DIP switch
- Complies with IEEE 802.3af/at/bt PoE end-span/mid-span PSE
- Supports PoE power up to 60 watts for PoE port
- Auto-detection of PoE IEEE 802.3af/at/bt equipment and devices from being damaged by incorrect installation
- Monitor the status of the total PoE usage in real time
- Remote power feeding up to 100m
Hardware
- All-in-one compact size design
- LED indicators for Power LED, PoE-in-Use LED, Legacy LED and PoE Usage LED
- Wall-mount design
- Metal case
Teknik Özellikler
| Hardware Specifications | |
| Interface | Input Port |
| 1 x RJ45 STP | |
| Data In | |
| Output Port | |
| 1 x RJ45 STP | |
| PoE (Data + Power) Out | |
| DC Socket | |
| 1 x 52~56V DC input socket | |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) |
| 10BASE-T: 4-pair UTP Cat3, 4, 5, 5e, 6 | |
| 100BASE-TX: 4-pair UTP Cat5, 5e, 6 | |
| 1000BASE-T: 4-pair UTP Cat5e, 6 | |
| LED Indicator | System: Power x 1 (Green) |
| PoE Port: PoE in-Use x 1 (Orange) | |
| Legacy mode: Legacy x 1 (Orange) | |
| PoE Usage: PoE Usage x 3 (Orange) | |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 200g |
| Unit Output Voltage | DC 54V |
| Power Requirements | External AC-to-DC adapter |
| 100-240V AC, 50/60Hz, 1.5A | |
| Power Consumption | 72 watts max. |
| No. of devices that can be powered | 1 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at/bt Ultra PoE PSE |
| PoE Power Output Budget | DC 54V / 60-watt PoE via 4-pair |
| DC 54V / 30-watt PoE via 2-pair | |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) |
| Pair 2 Mid-span: 4/5 (+), 7/8 (-) | |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3bt 4-pair Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 90%, Relative Humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, Relative Humidity, non-condensing |
| Standard Accessories | |
| Package Contents | POE-171A-60 |
| User's Manual | |
| AC-to-DC power adaptor | |
| AC power cord | |
