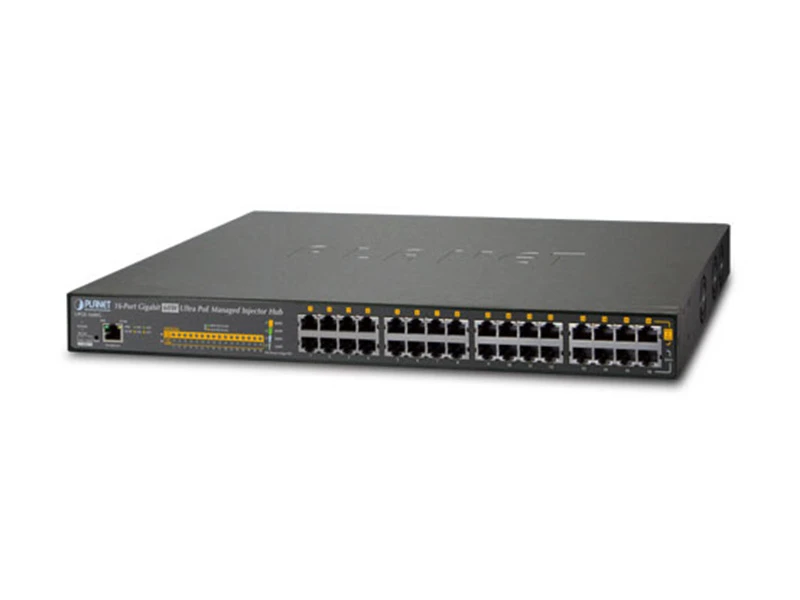

Planet UPOE 1600G PoE Managed Injector Hub

Özellikler

Interface

Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards
32-port RJ45
- 16-port 10/100/1000Mbps “Data input”
- 16-port 10/100/1000Mbps “Data + Power output”
One 10/100/1000BASE-T management port

Power over Ethernet

Ultra Power over Ethernet end-span/mid-span PSE
Up to 60 watts of power on 4-pair UTP
Backward compatible with IEEE 802.3at/af PD device
52V DC, 60-watt PoE power output at maximum on each port
600-watt PoE budget
Auto-detection of IEEE 802.3at/af PoE equipment and device to avoid possible damage by incorrect installation
Circuit protection prevents power interference between ports
Remote power feeding up to 100m

PoE Management

Per port PoE power schedule
PoE function enable/disable
Per port PoE function enable/disable
PoE port power feeding priority
PD classification detection
Over temperature protection
PD alive check
PoE schedule

Management

Web interface for remote management
Supports Network Time Protocol (NTP)
Firmware upgrade through Web interface
PLANET Smart Discovery utility automatically finds PLANET devices on the network
SNMP trap for alarm notification of events
System log/remote syslog

Hardware

19-inch rack mountable; 1U height
Reset button for resetting to default setting and system reboot
LED indicators for PoE ready and PoE activity
LED indicators for power alert and fan alert
LED indicators for PoE power usage status (watts)
FCC Part 15 Class A, CE

Teknik Özellikler

Hardware
Interface	“Data” Input Ports: 16 x RJ45
	“Data + Power” Output Ports: 16 x RJ45
	Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation,
	auto-MDI/MDIX
Data Rate	10/100/1000Mbps
LED	System:
	SYS PWR x 1 (Green)
	PoE Failure x 1 ( Red )
	Fan Failure x 2 ( Red )
	Management port x 2:
	1000 (Green), 10/100(Orange)
	Per PoE Port:
	Ultra 60W PoE-in-use x 1 (Green)
	802.3at/af PoE-in-use x1 (Orange)
	PoE Power Usage LED x4 (Green)
Power Requirements	100-240V AC, 50/60 Hz, 8A
Power Consumption	800 watts (max.)/2729BTU
Ventilation	Fan x 3
Dimensions (W x D x H)	440 x 300 x 44.5 mm, 1U height
Enclosure	Metal
Weight	4.8kg
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	4-pair Ultra PoE
PoE Power Supply Type	End-span/Mid-span/UPoE(Ultra PoE)
Power Pin Assignment	Pair 1 end-span: 1/2(-), 3/6(+)
	Pair 2 mid-span: 4/5(+), 7/8(-)
	UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Output	DC 52V/60-watt PoE via 4-pair
PoE Power Output	DC 52V/30-watt PoE via 2-pair
PoE Power Budget	600 watts/2047BTU
Number of 60W PDs can be powered	10
Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered	16
Number of 802.3at PDs (Class 1, 2, 3) can be powered	16
Number of 802.3at PDs (Class 0, 4) can be powered	16
Management
Management Interface	Web, PLANET Smart Discovery Lite
PoE Management	Power limit by consumption and allocation
	PoE admin mode
	Per port power schedule
	Per port power enable/disable
	Power feeding priority
	Over temperature protection
	Current per port usage and status
	Total power consumption
	PD alive check
	Scheduled power recycling
Management Feature	Setup of system/management functions
	Web firmware upgrade
	SNMP trap for alarm notification of events
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T Ethernet
	IEEE 802.3u 100BASE-TX Fast Ethernet
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
	RFC 768: UDP
	RFC 791: IP
	RFC 2068 HTTP
	RFC 1157: SNMP v1
	RFC 1902: SNMP v2c
	RFC 5424: Syslog
Network Cable	10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
	100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
	1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
	EIA/TIA- 568 100-ohm STP (100m)
Environments
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 90% (non-condensing)
