Açıklama

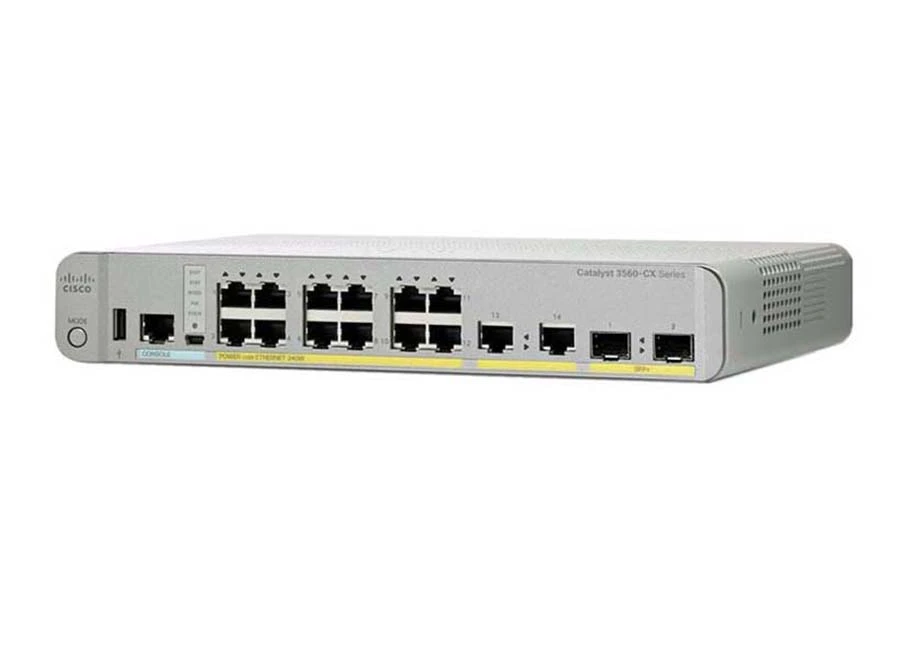

Cisco Catalyst 3560CX 12PC S PoE Switch
Teknik Özellikler
WS-C3560CX-12PC-S | |
Ethernet Ports | 12 x 10/100/1000 Gigabit Ethernet |
PoE | 12 PoE+ |
Output Ports | |
Available | 240W |
PoE Power | |
Uplinks | 2 x 1G copper plus |
2 x 1G SFP | |
Default Software | IP Base (IP Services with RTU License) |
Powering Option | Internal power supply |
Available PoE Power (W) | 240W |
Can Switch Be Powered with Uplinks? | No |
Forwarding Bandwidth | 16 Gbps |
Switching Bandwidth (full-duplex capacity) | 32 Gbps |
Flash memory | 128 MB |
Memory DRAM | 512 MB |
Max VLANs | 1023 |
VLAN IDs | 4000 |
Maximum transmission unit (MTU) | Up to 9000 bytes |
Jumbo frames | 9198 bytes |
Forwarding rate 64 Byte Packet | 23.8 mpps |
Dimensions | 1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm) |
(H x W x D) | |
Weight | 5.1 lb (2.31 Kg) |
Operating* temperature up to 5000 ft (1524 m) | -5°C to +45°C (+23°F to +113°F) |
Operating* temperature up to 10,000 ft (3048 m) | -5°C to +45°C (+23°F to +113°F) |
Storage temperature up to 15,000 ft (4572 m) | -25°C to +70°C (-13°F to +158°F) |
Operating altitude | Up to 3048 m (Up to 10,000 ft) |
Storage altitude | Up to 4000 m (Up to 15,000 ft) |
Operating relative humidity | 5% to 95% noncondensing |
Storage relative humidity | 5% to 95% noncondensing |
MTBF | 553,14 |
Environmental | Reduction of Hazardous Substances (ROHS) 6 |
Telco | Common Language Equipment Identifier (CLEI) code |
Cisco Catalyst 3560CX 12PC S PoE Switch Pdf Dosyası870.98 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
![Tooltip](/media/system/images/tooltip.png)
PoE Güç Bütçesi : 200-400 Watt
